MN12C25D Memory Integrated Circuit

Published:2011/5/8 22:38:00 Author:Sharon | Keyword: Memory, Integrated | From:SeekIC

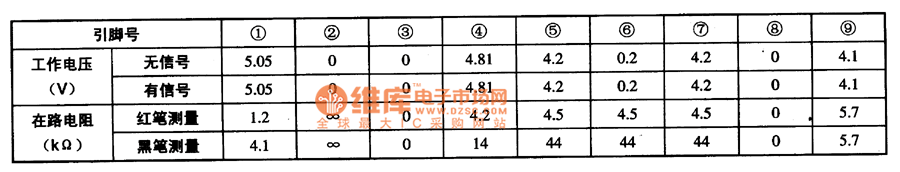

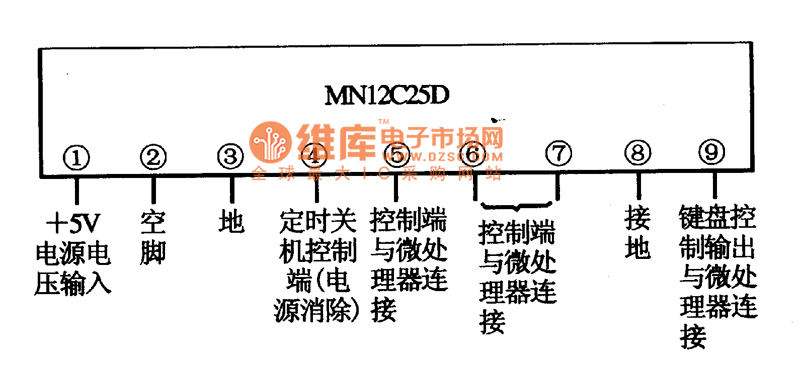

MN12C25D is memory integrated circuit produced by Matsushita, widely used in electronic products of Panasonic series, such as Panasonic color TV, air conditioning, DVD players and so on. 1. Features MN12C25D IC 's internal is mainly composed of the memory matrix, data and clock interface circuit, memory control circuit and other ancillary circuit. 2. Functions and data MN12C2SD IC is in 2.5 foot 9-pin single row of plastic package with its function as shown in the figure, and its operating parameters listed in Table.
