MN1220 Memory Integrated Circuit

Published:2011/5/8 21:59:00 Author:Sharon | Keyword: Memory, integrated | From:SeekIC

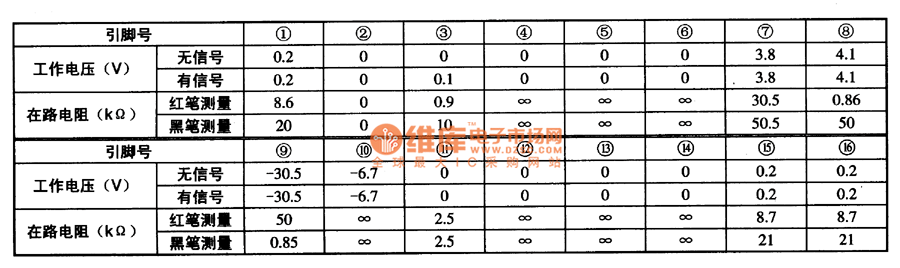

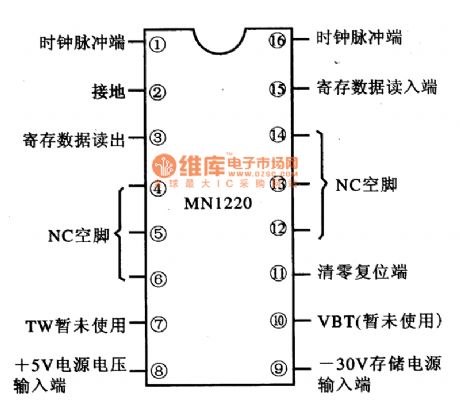

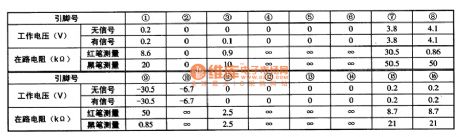

MN1220 is memory integrated circuit produced by Matsushita, widely used in televisions, audio equipment, DVD players and so on. 1. FeaturesMN1220 IC is mainly composed of the memory matrix within the circuit, reset circuit and data input / output interface circuit. 2. Pin functions and dataMN1220 IC is in 16-pin dual in-line package. The pin functions are shown in the figure, and the operating parameters are listed in Table.
