MAGNETIC_PROXIMITY_SENSOR

Published:2009/6/17 22:05:00 Author:May | From:SeekIC

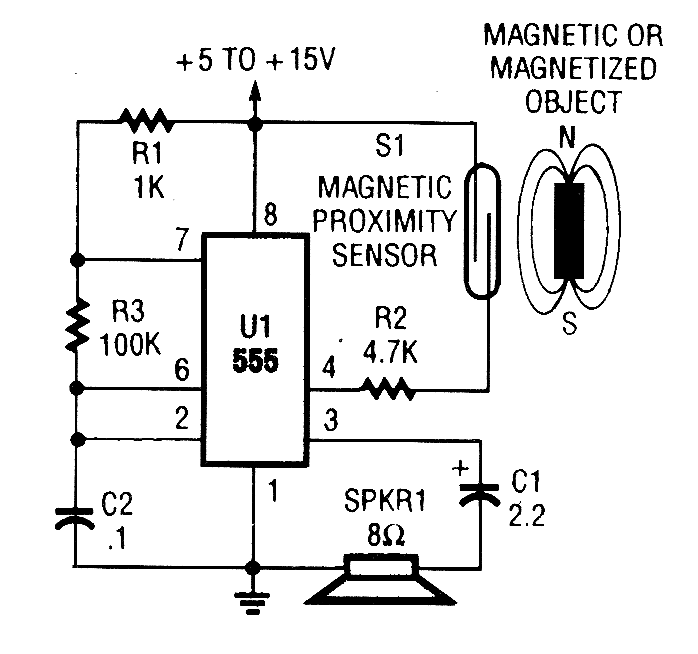

A magnetic need switch enables a 555 osciltator, which drives a speaker. C2 can be varied for different tone frequencies.
