HUM_DETECTING_TOUCH_SENSOR

Published:2009/7/11 1:22:00 Author:May | From:SeekIC

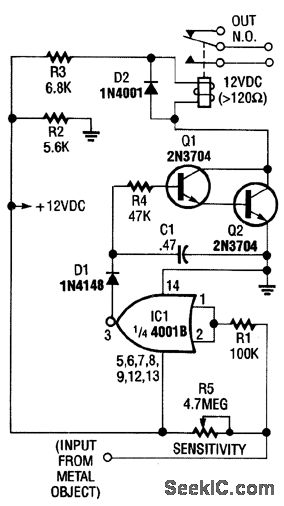

This touch sensor uses the 60-Hz hum pickup by the human body to drive a detector and relay drivers, Q1 and Q2. R5 controls sensitivity of the circuit.
