CL-YB-402 Force Sensor Scheme Circuit

Published:2011/5/6 3:03:00 Author:Sharon | Keyword: Force Sensor, Scheme | From:SeekIC

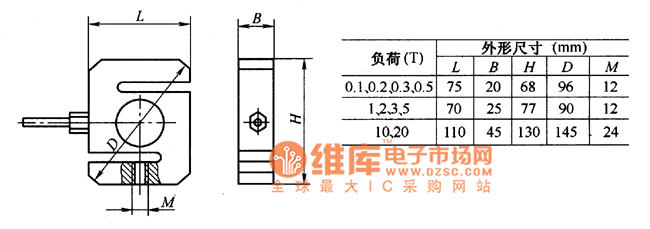

CL-YB-402 force sensor scheme circuithas thecharacteristics of overload and high precision, can be widely used in chemical, mining and other sectors in the truck and railroad track scale.Its dimensions are shown in the figure.
