Absolute_temperature_sensor

Published:2009/7/19 22:03:00 Author:Jessie | From:SeekIC

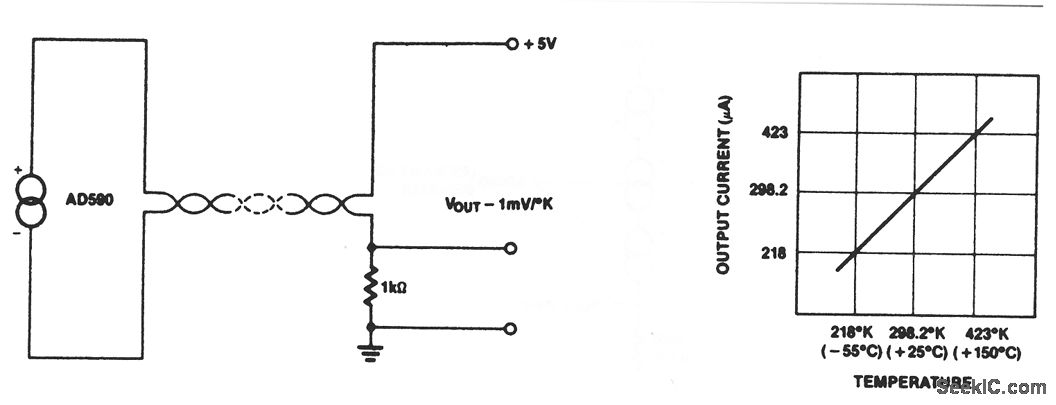

This circuit shows an AD590 that is connected as a basic absolute-temperature sensor. The output is proportional to absolute temperature, as shown by the graph. Harris Semiconductors Data Acquisition 1991, p 12-7
