20 kbps light receiving circuit diagram

Published:2011/5/13 4:04:00 Author:Ecco | Keyword: 20 kbps light receiving | From:SeekIC

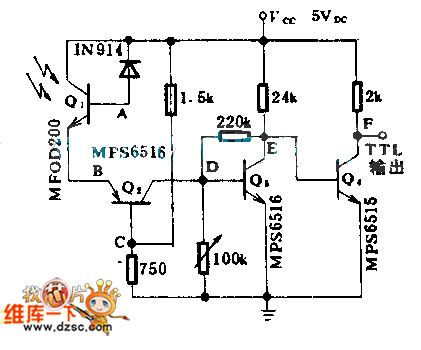

The circuit diagram uses optical transistor to drive three pieces of crystal amplifier tubes, generate TTL output, the data rate can reach 20,000 Kbp/s.
