110V Regulated Power Supply Circuit with Stable Performance

Published:2011/6/30 4:43:00 Author:Joyce | Keyword: 110V , Regulated Power Supply , Stable Performance | From:SeekIC

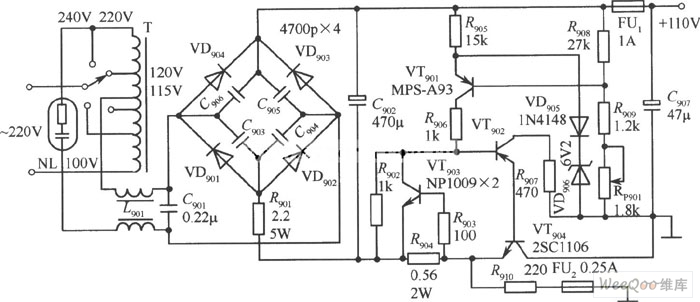

110V regulated power supply circuit with stable performance is as shown in the figure.
