Jintaike KT-D8302 Digital Satellite Receiver Power Common Fault Repairing Circuit

Published:2011/8/6 20:01:00 Author:Robert | Keyword: Jintaike, Digital, Satellite, Receiver, Power, Common, Fault, Repairing | From:SeekIC

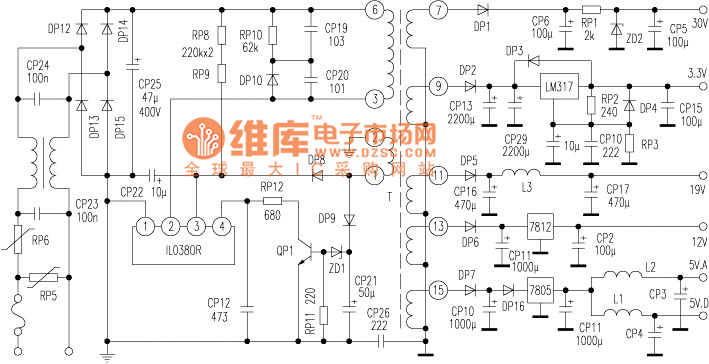

The Jintaike KT-D8302 digital satellite receiver switch power uses the 4-pin integrated module IL0380R to complete the oscillation and output. It looks like a plastic-package power tube. By taking the IL0380R as the key, the power circuit structure is very simple. It has few elements but its performance is good and it has low power consumption. If working continuous for more than 10 hours, its case upside cover has just tepidity. This device has a large number in the society, however its repairing material is lacking. So here it has drawn the power principle circuit for reference according to the practical device, which is shown in the picture.
