Ultra-small 400 meters wireless remote control circuit diagram

Published:2011/4/24 10:03:00 Author:Rebekka | Keyword: wireless remote control | From:SeekIC

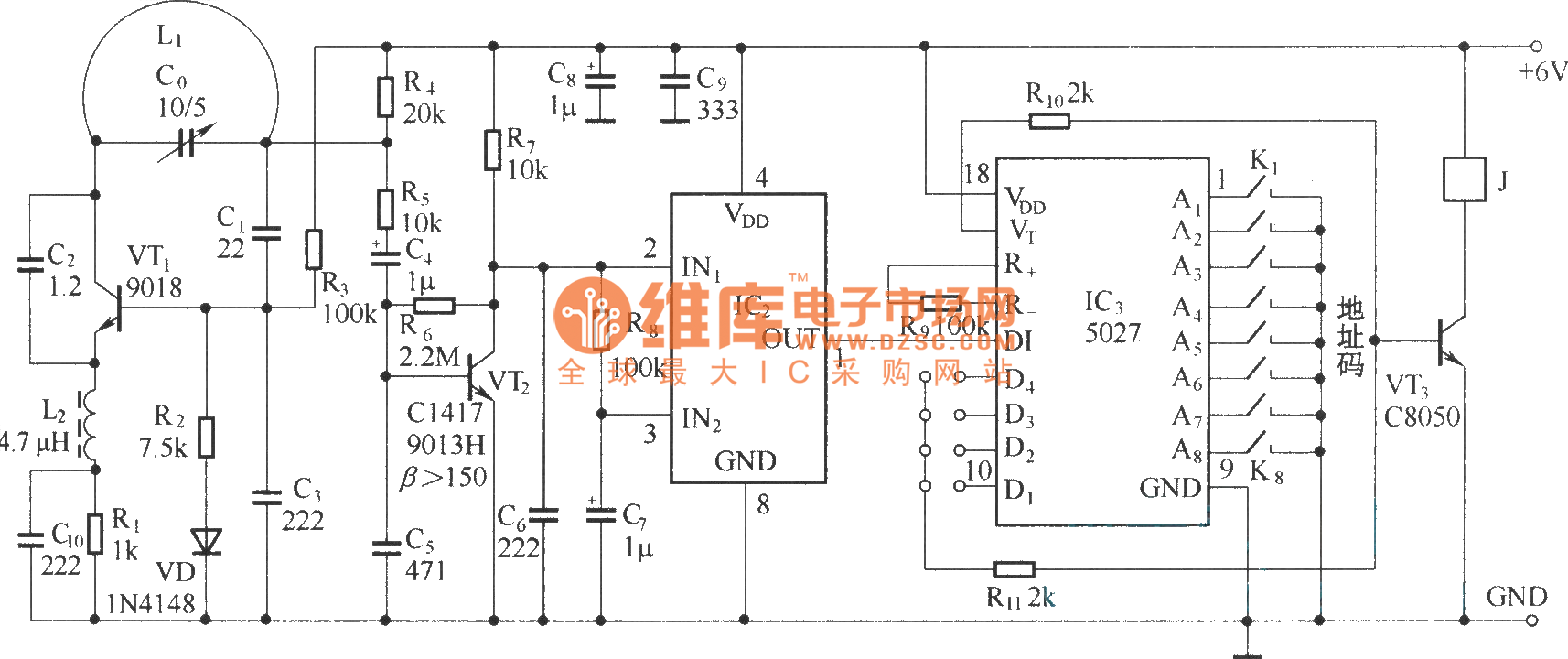

Transmitter circuit: Receiver circuit: Ultra-small wireless remote control use 400-meter digital encoder / decoder VD5026/VD5027 as the core and use emission-specific transistor LD-400, the remote distance is far, its operation stable and reliable.
