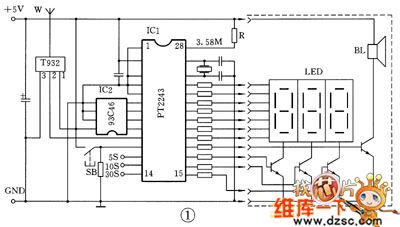

In the circuit, when the high frequency receiving component T932 receives the wireless encoding signal from the emitter, after being rectified by the pulse circuit, 2-pin of T932 outputs the restored address code, crossing code, digit code, clock code and other signals, the signal is added on the 10-pin of PT2243, and after it is confirmed by the internal dynamic state decoding scanner, the signal is output from the according connector as a 3-bit digit decoding signal, which can drive 3-bit 7-stage LED screen. The circuit can be connected with other circuit for the user, such as PC management.
