The detection circuit of Santana power control system components

Published:2011/5/14 4:00:00 Author:Borg | Keyword: detection circuit, Santana, power control system | From:SeekIC

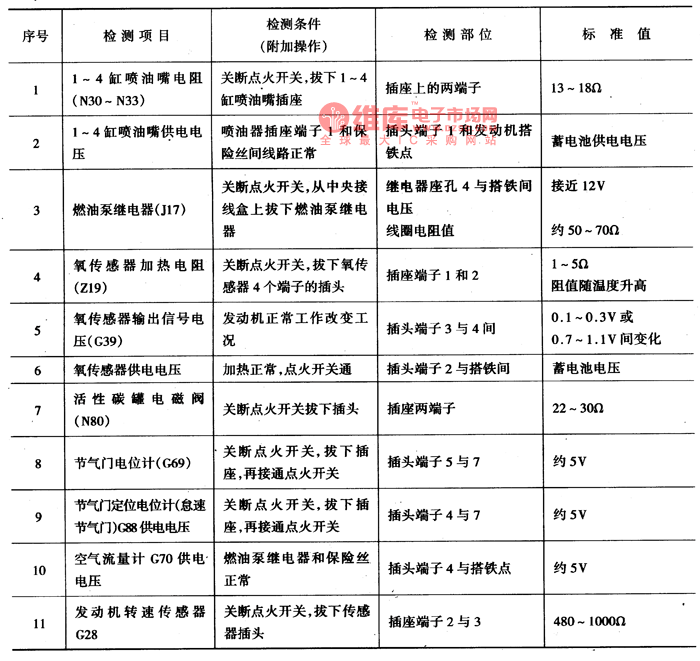

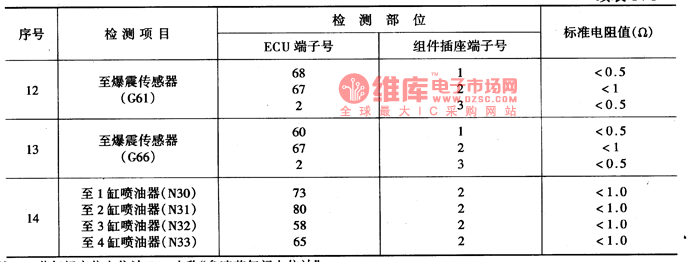

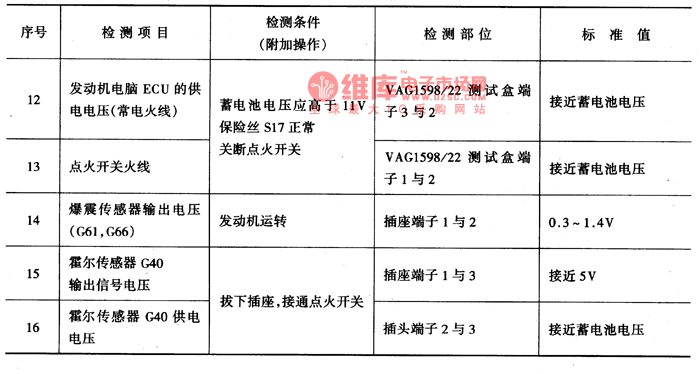

To detect if a component links to computer J220, we can refer to Figure 1 to Figure 6, the part between terminal of 80 connector and connector of sensor or executor is tested with ohm mode(with buzz) of multimeter; generally, if the connection is OK, i.e without disruption or eroding, the displayed number will be less than o.5Ω; even in the long circuit, the resistence is under 1Ω, and the buzzer will buzz if not. Figure 3 the disruption detection between AJR engine power-control ECU system and components
