TC9132P remote control transmission line circuit

Published:2011/9/8 19:53:00 Author:TaoXi | Keyword: remote control, transmission line | From:SeekIC

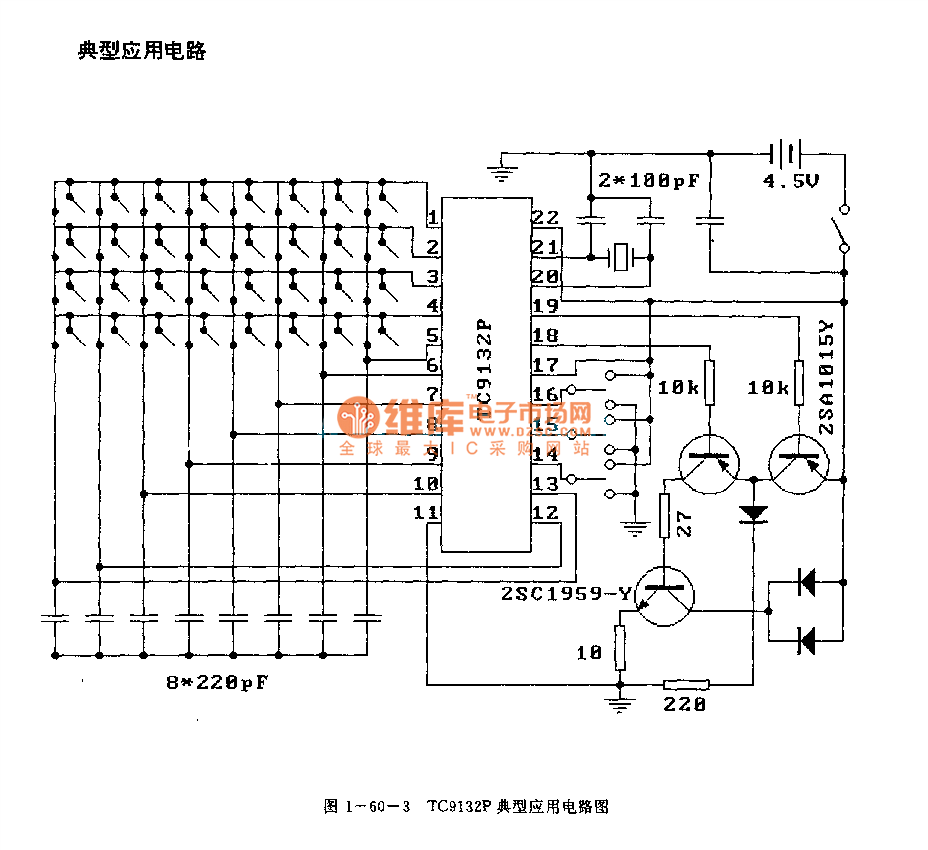

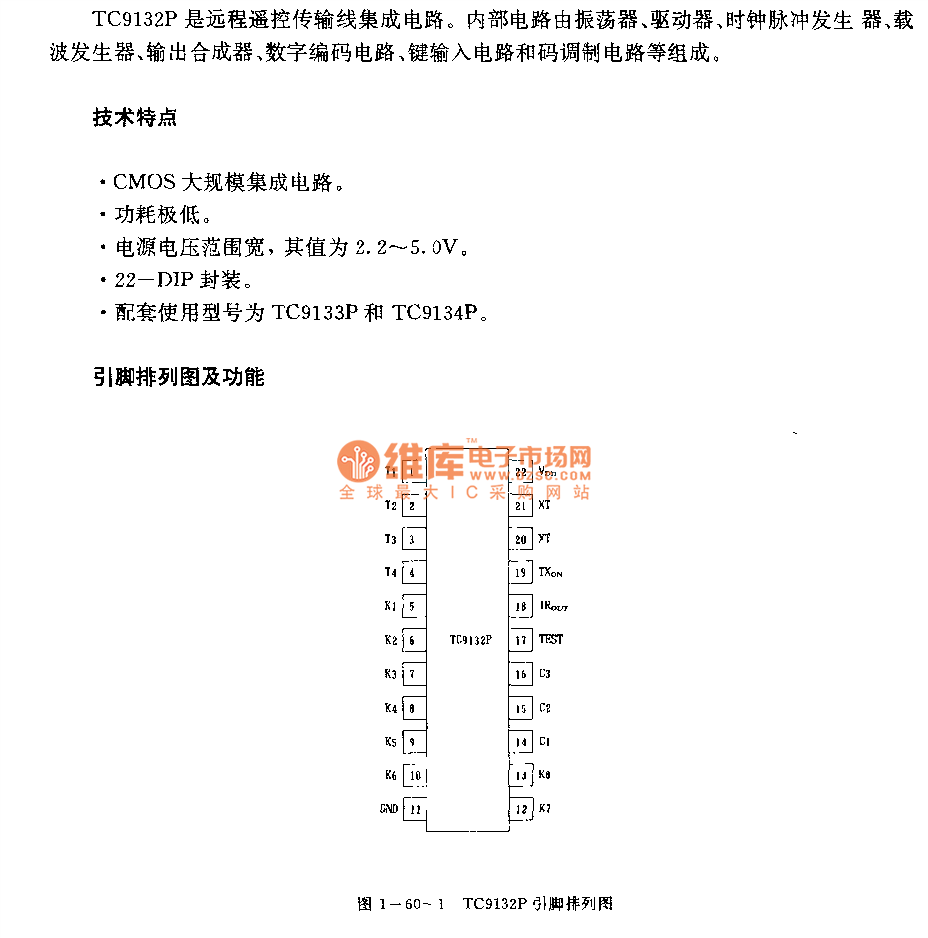

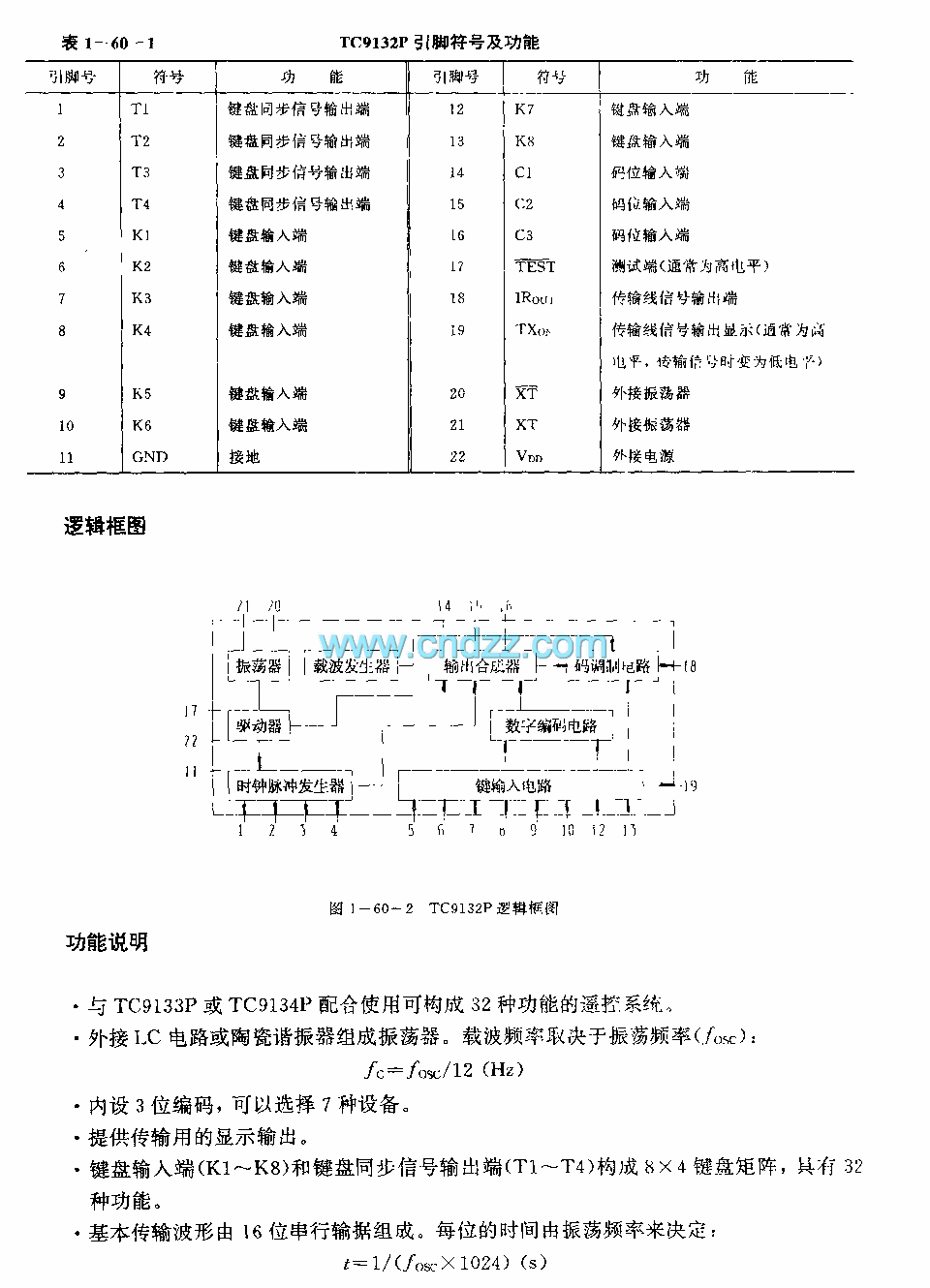

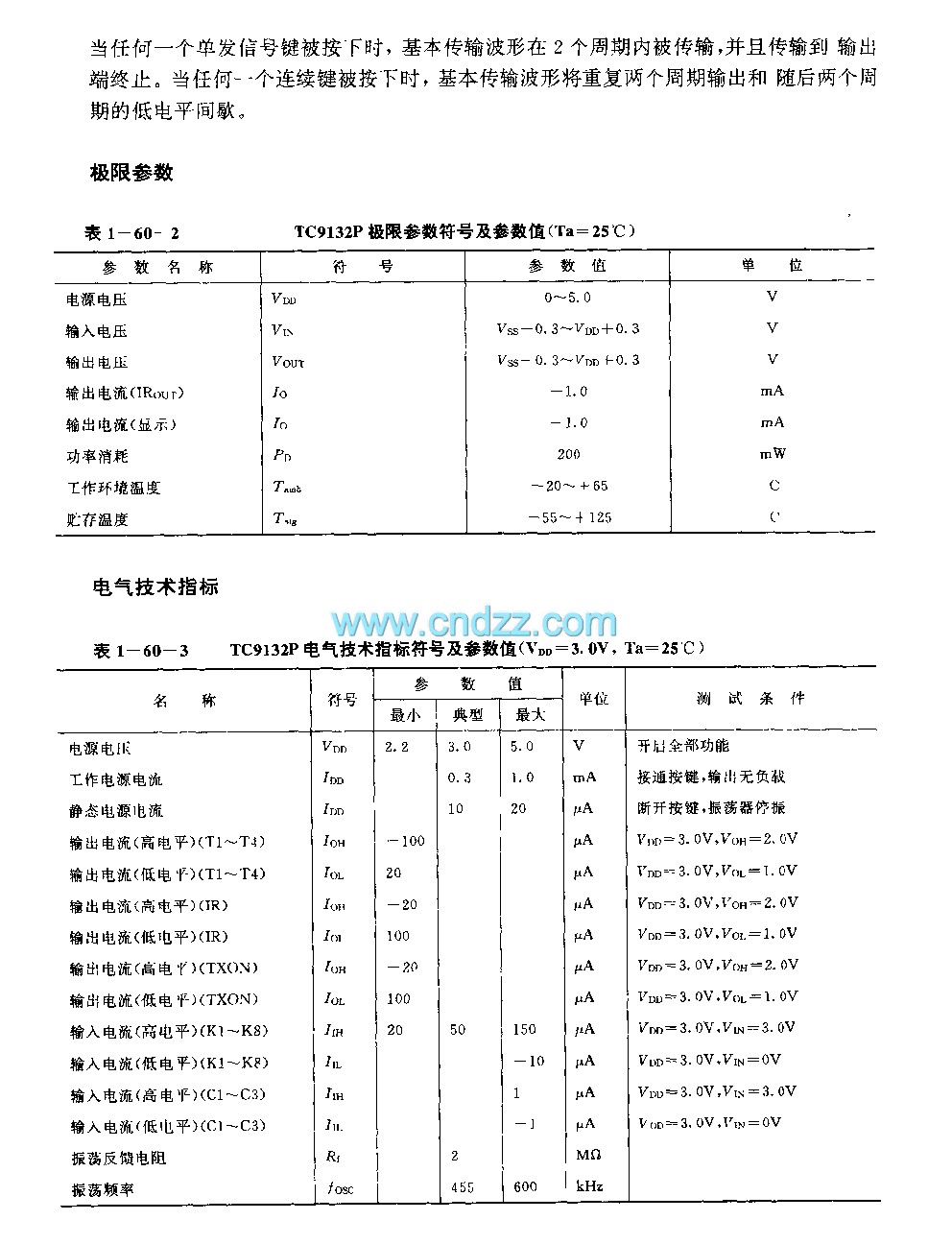

The TC9132P is designed as one kind of remote control transmission line circuit. The internal circuit is composed of the oscillator, the driver, the clock pulse generator, the carrier frequency generator, the output synthesizer, digital coding circuit, key input circuit and the code modulation circuit. Features CMOS large scale integrated circuit.The power consumption is low.The power supply voltage range is wide, the value is 2.2-5.0V.The 22-DIP package.The matching models are TC9133P and TC9134P. Function description It forms the remote control system which has 32 kinds of functions with the TC9133P or TC9134P.It forms the oscillator with the LC circuit or the ceramic resonator. The carrier frequency depends on the oscillation frequency.It supplies the display output.
