TC9012F--the remote control emitter integrated circuit

Published:2011/6/7 10:56:00 Author:qqtang | Keyword: remote control, integrated circuit | From:SeekIC

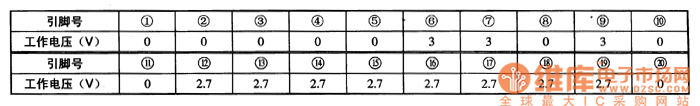

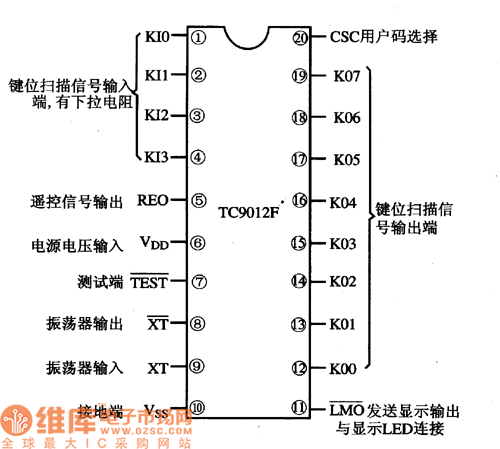

TC9012F is a remote control emitter integrated circuit produced by Toshiba, which is widely used in remote emitters of air-conditioners, TV sets, stereo equipment, disc players, etc.1.functions featuresTC9012F contains the key pulse generating circuit, key order encoding circuit, clock oscillating circuit, display drive circuit, customer number setting selector circuit, buffer amplifier circuit, test circuit and other additional function circuits.2.pin functions and dataTC9012F is in 20-pin dual line package.
