TA7344P general remote control receiving preamplifier circuit

Published:2011/7/27 19:11:00 Author:TaoXi | Keyword: general, remote control, receiving, preamplifier circuit | From:SeekIC

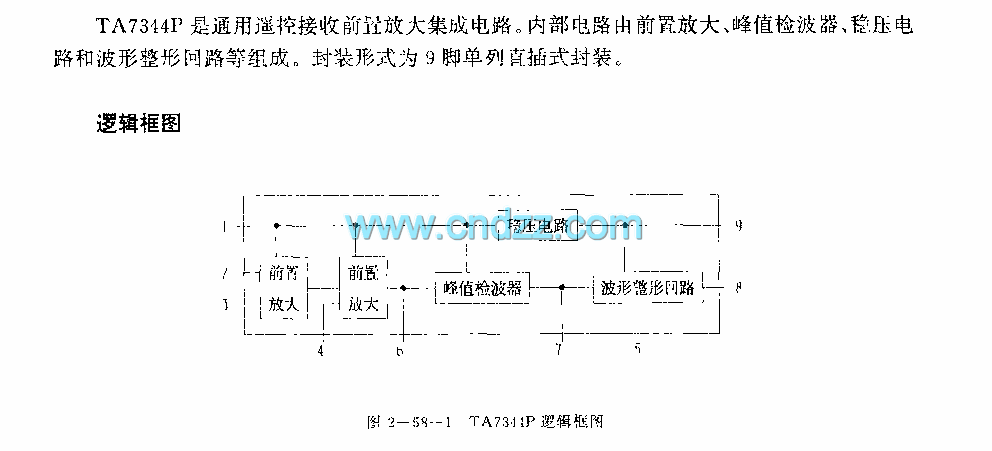

The TA7344P is designed as the general remote control receiving preamplifier circuit. The internal circuit is composed of the preamplifier circuit, the peak value detection circuit, the voltage stabilization circuit, the waveform plastic loop. It is in the 9-pin single row DIP package.
