Rolling radio control circuit(TH150/TH150A/B)

Published:2011/10/19 22:32:00 Author:Rebekka | Keyword: Rolling radio control | From:SeekIC

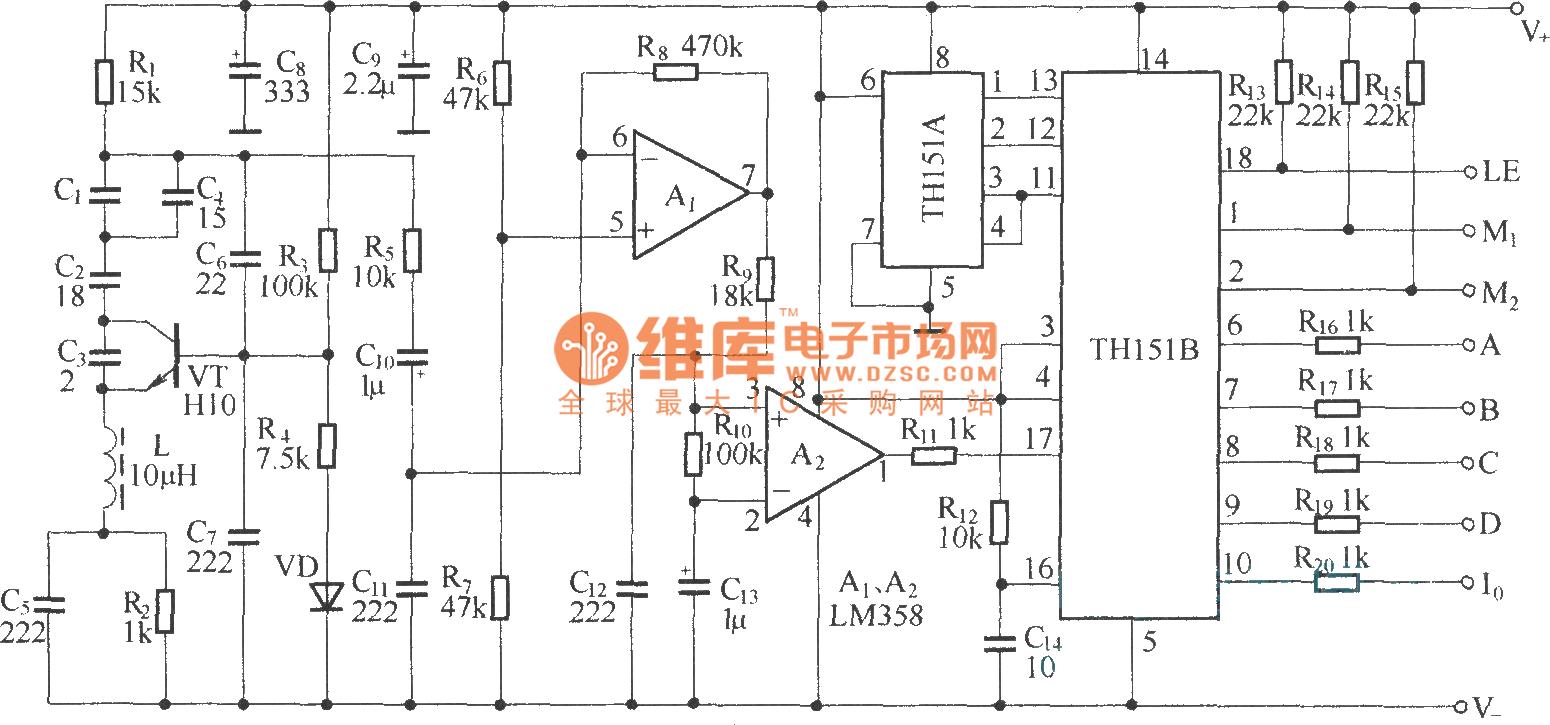

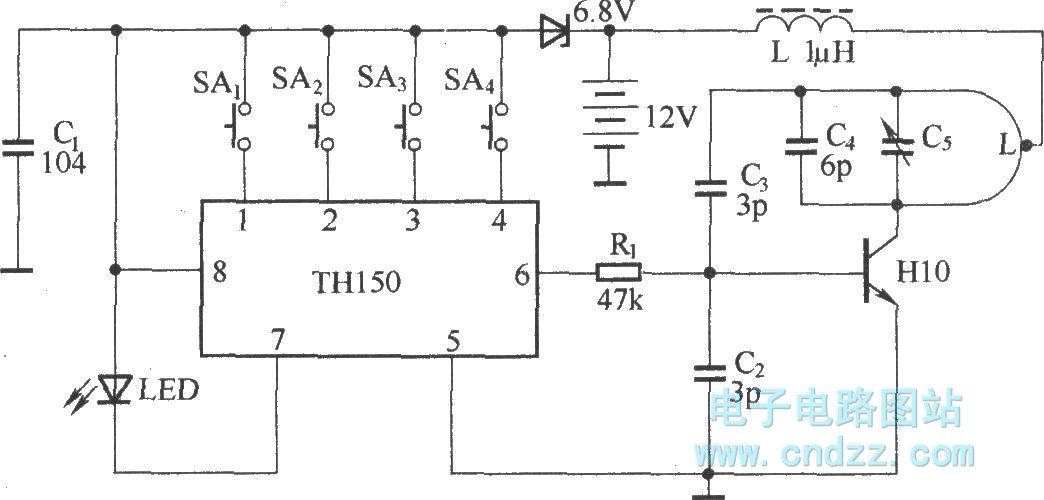

The internal structure of rolling code encoder circuit is complex. Its encoded mode is special. But its usage is the same with digital coding circuit and even more simple. The radio control circuit is composed of rolling code decoding circuits TH150/TH151A. The circui is shown as above. Super-regenerative wireless remote control receiver circuit(rolling decoding circuit TH151A / B ).
