REMOTE_CONTROL_RECEIVER

Published:2009/6/17 22:53:00 Author:May | From:SeekIC

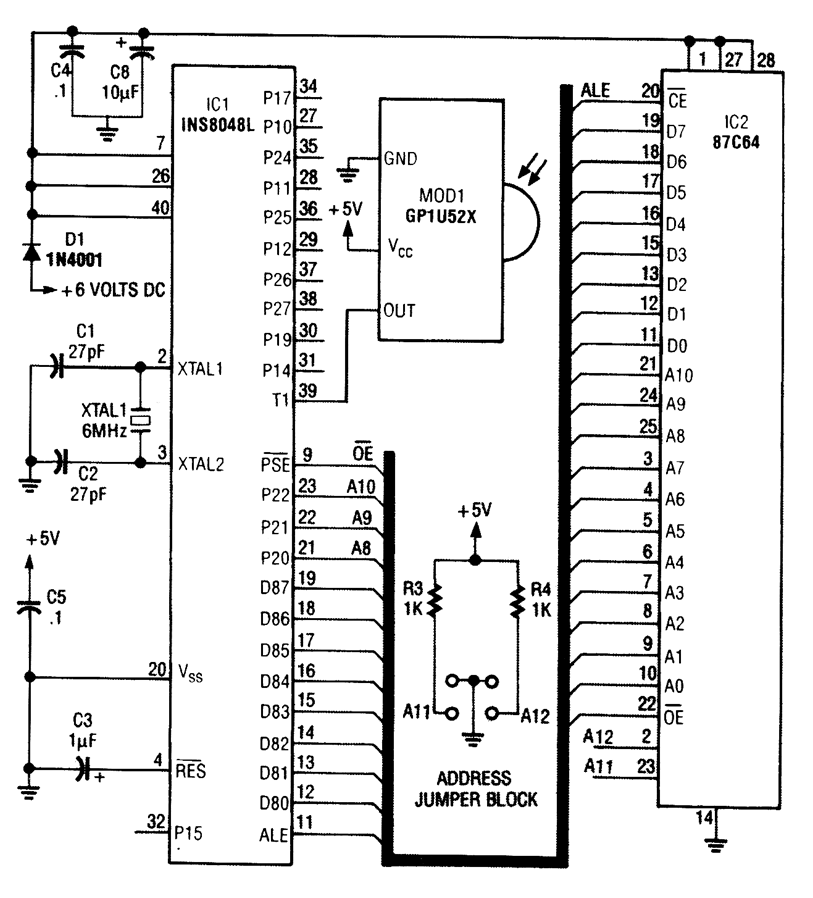

This circuit is based on the Sharp GP1U52X IR module and INS8048L microprocessor. The GP1U52X is a hybrid IC/infrared detector that provides a strong clean signal for later filtering and demodulation.
