Published:2011/10/17 20:58:00 Author:Rebekka | Keyword: remote microprocessor | From:SeekIC

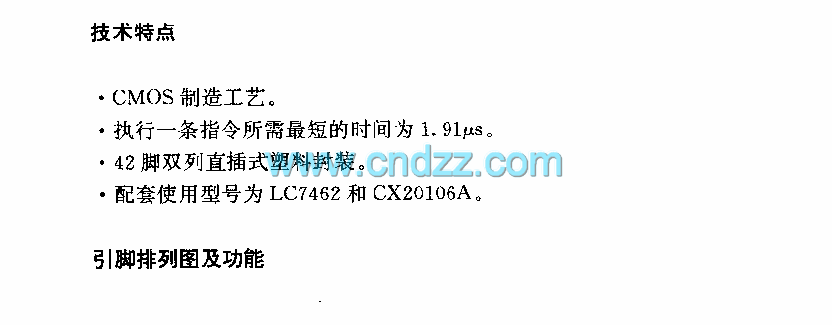

Technical Features:It uses CMOS manufacturing process.Execut one instruction costs 1.91μs.It uses 42 feet dual-in line plastic package.Matching models are LC7462 and CX20106A.

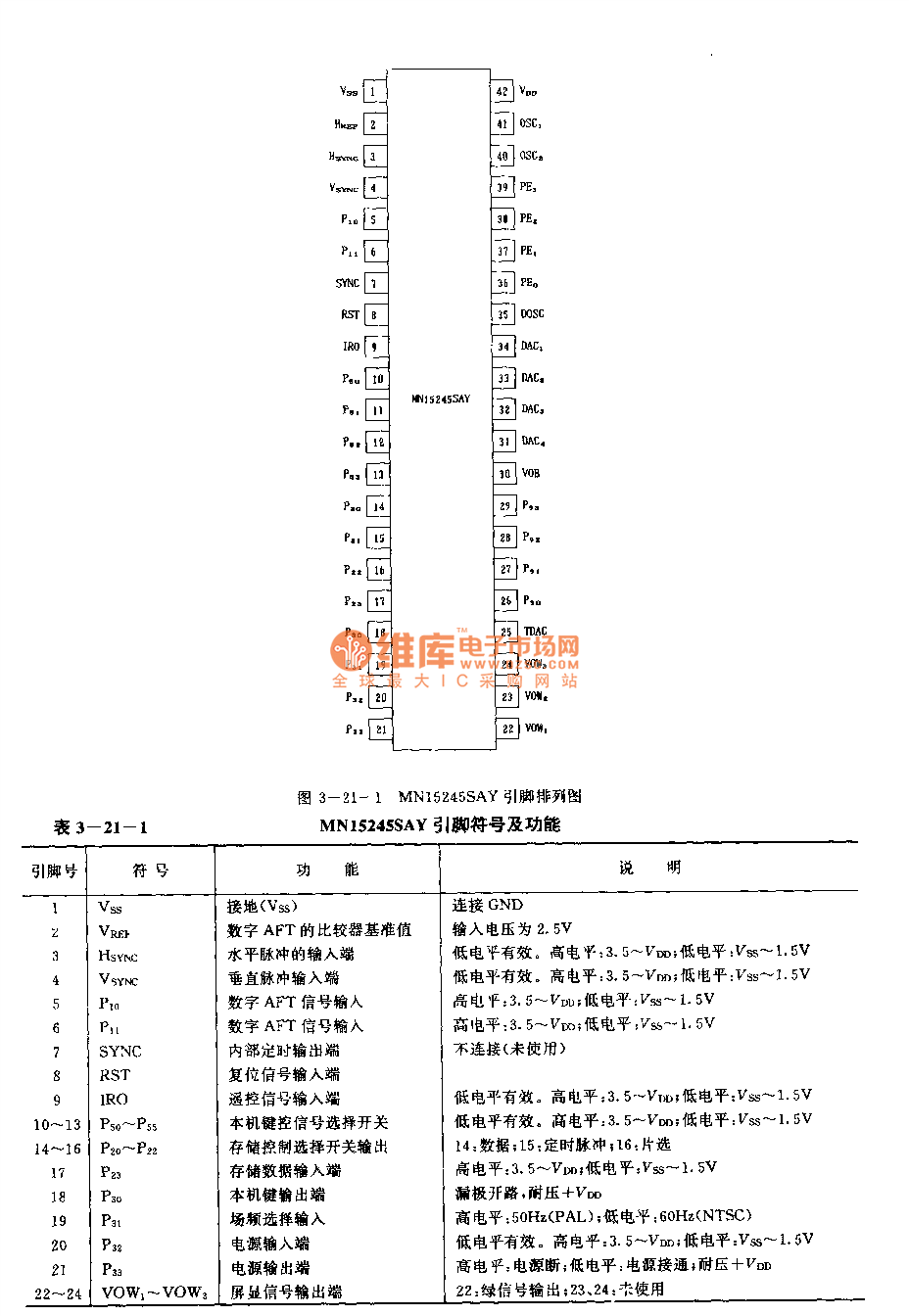

MN15245SAY pinout symbol and function.
Typical application circuit.
