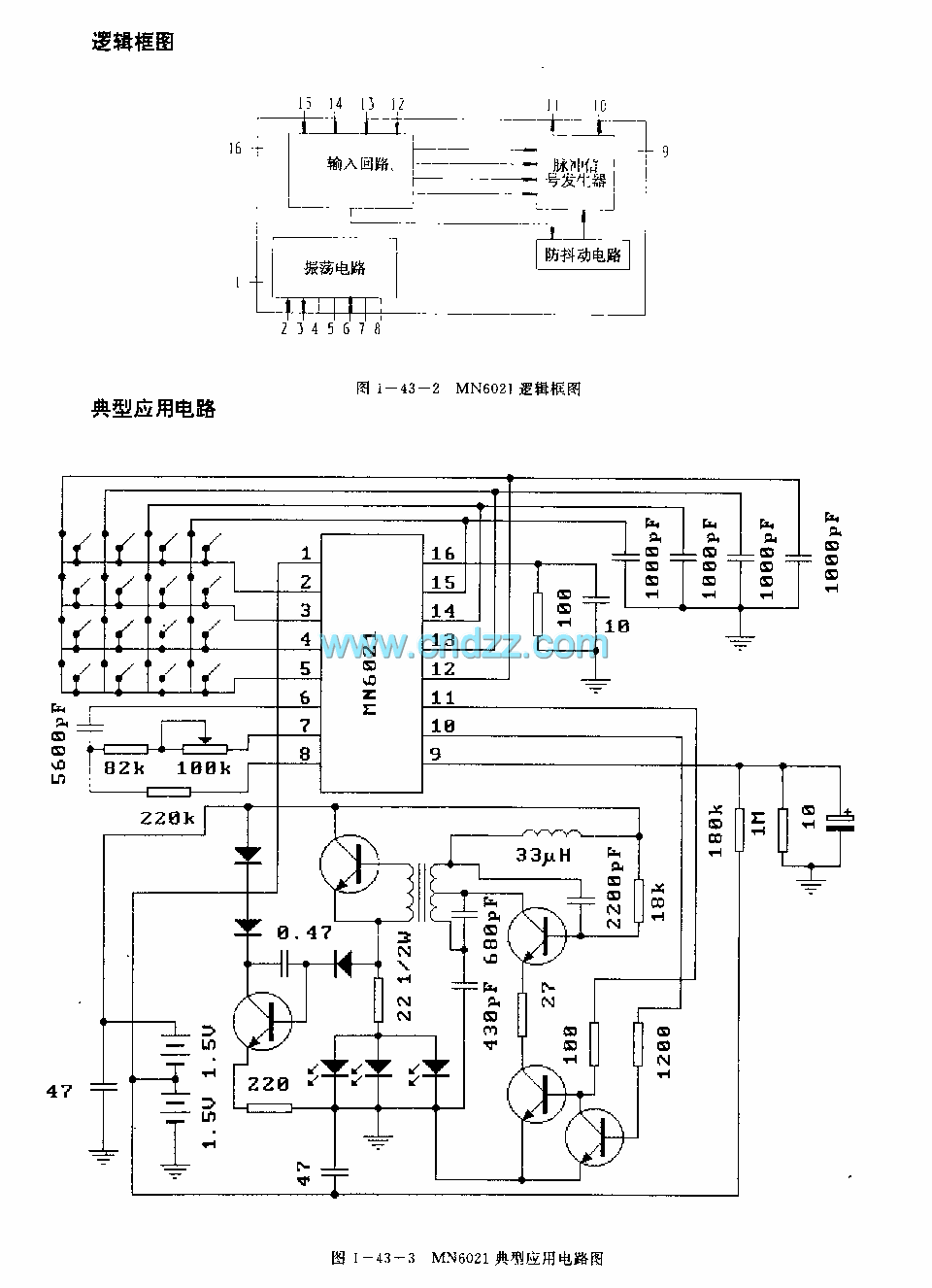

MN6021 (TV) infrared remote control transmitter circuit

Published:2011/7/17 8:16:00 Author:Christina | Keyword: TV, infrared, remote control, transmitter | From:SeekIC

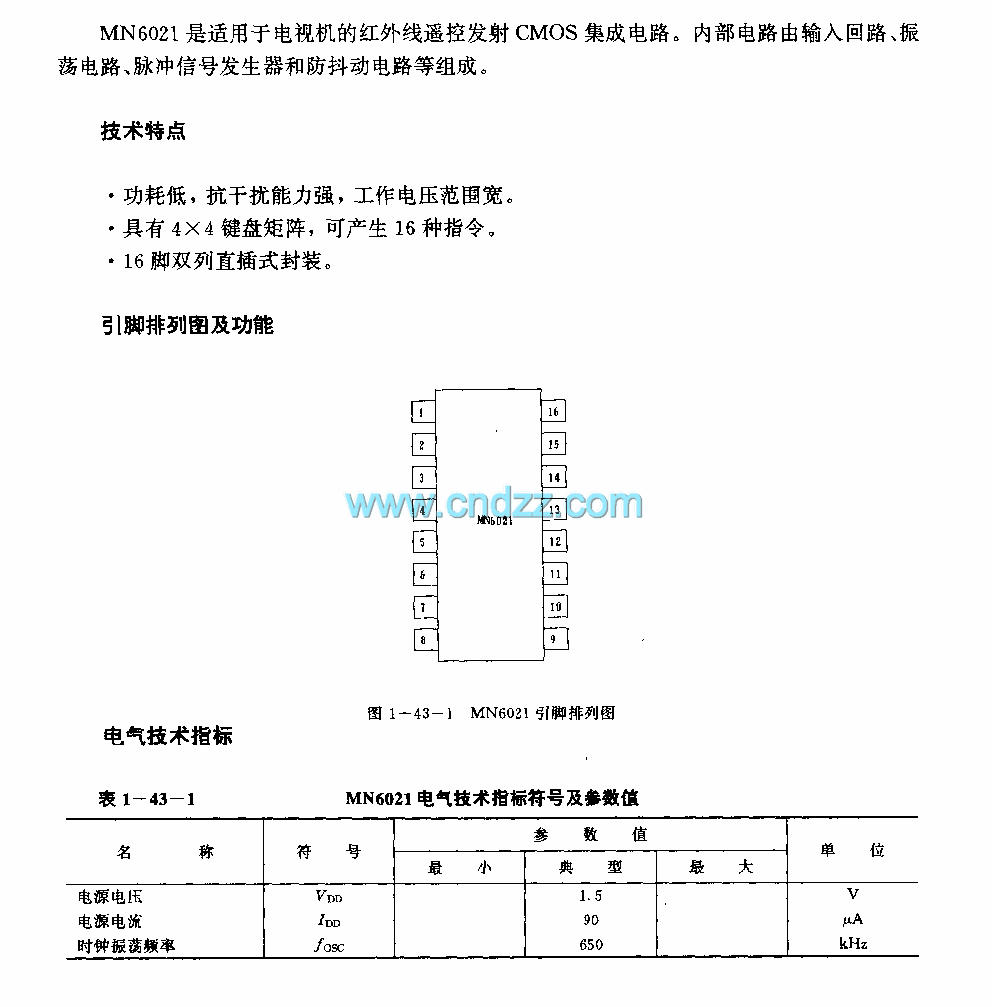

The MN6021 is designed as one kind of infrared remote control transmitter CMOS integrated circuit that can be used in the TV sets. The internal circuit is composed of the input loop, the oscillating circuit, pulse signal generator and the anti-jitter circuit. Features The low power consumption, strong anti-interference ability and wide operating voltage range .It has the 4X4 keyboard matrix to produce the 16 kinds of commands.16-pin dual-row DIP package.
