Long time delay timing circuit with CD4541

Published:2011/4/19 22:43:00 Author:Jessie | Keyword: Long time delay, timing | From:SeekIC

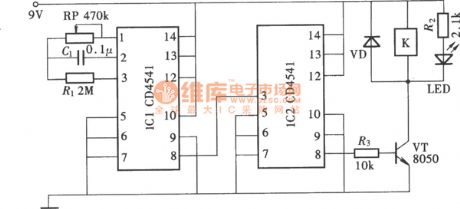

The two pieces of CD4541 can compose a long time delay timing circuit. Its delay time can reach 10 h, even several days or months. Its composition is as shown.
