KA2310 (toy) wireless remote control launch control regulation circuit

Published:2011/8/2 4:00:00 Author:TaoXi | Keyword: toy, wireless, remote control, launch, control, regulation circuit | From:SeekIC

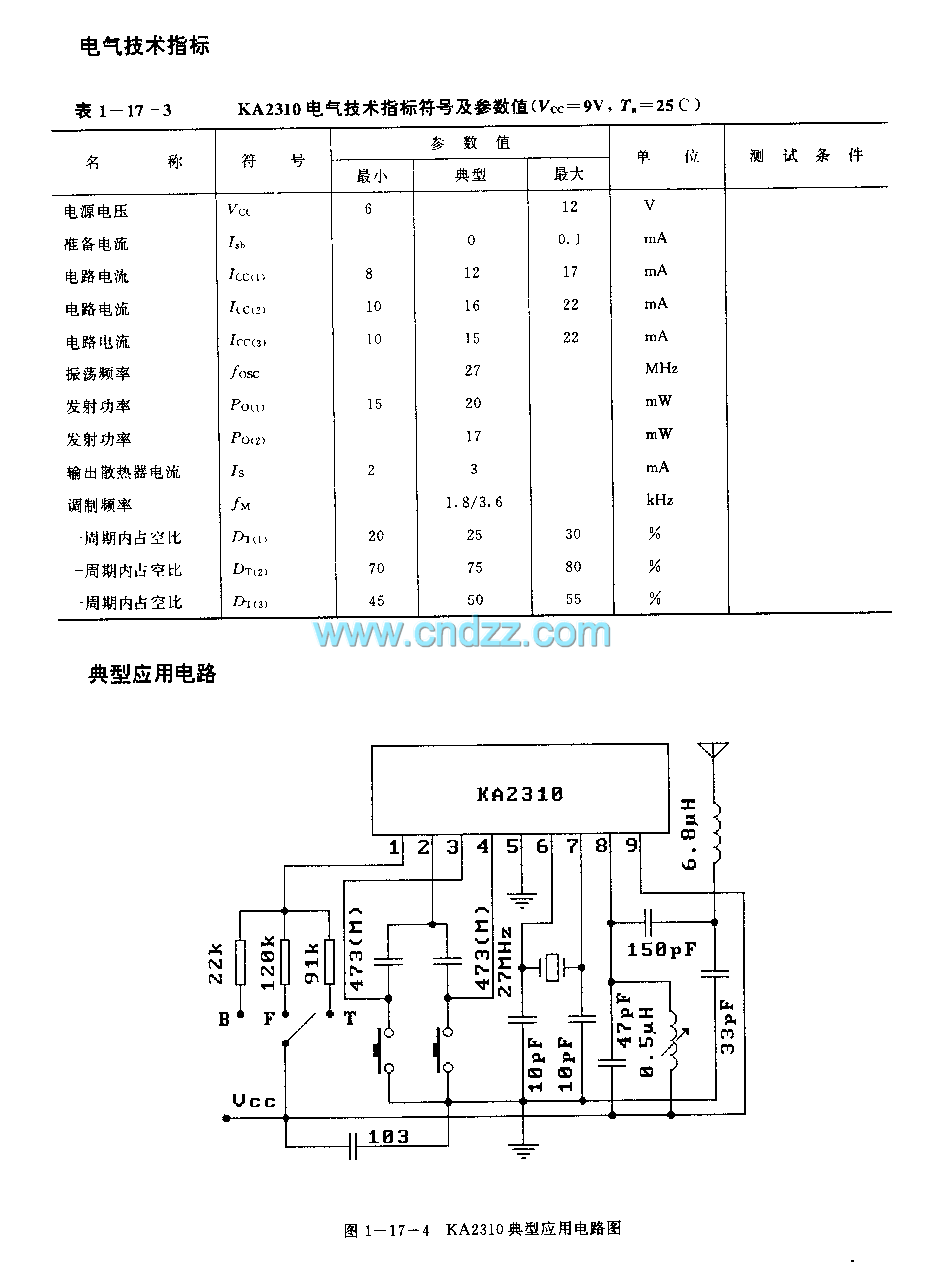

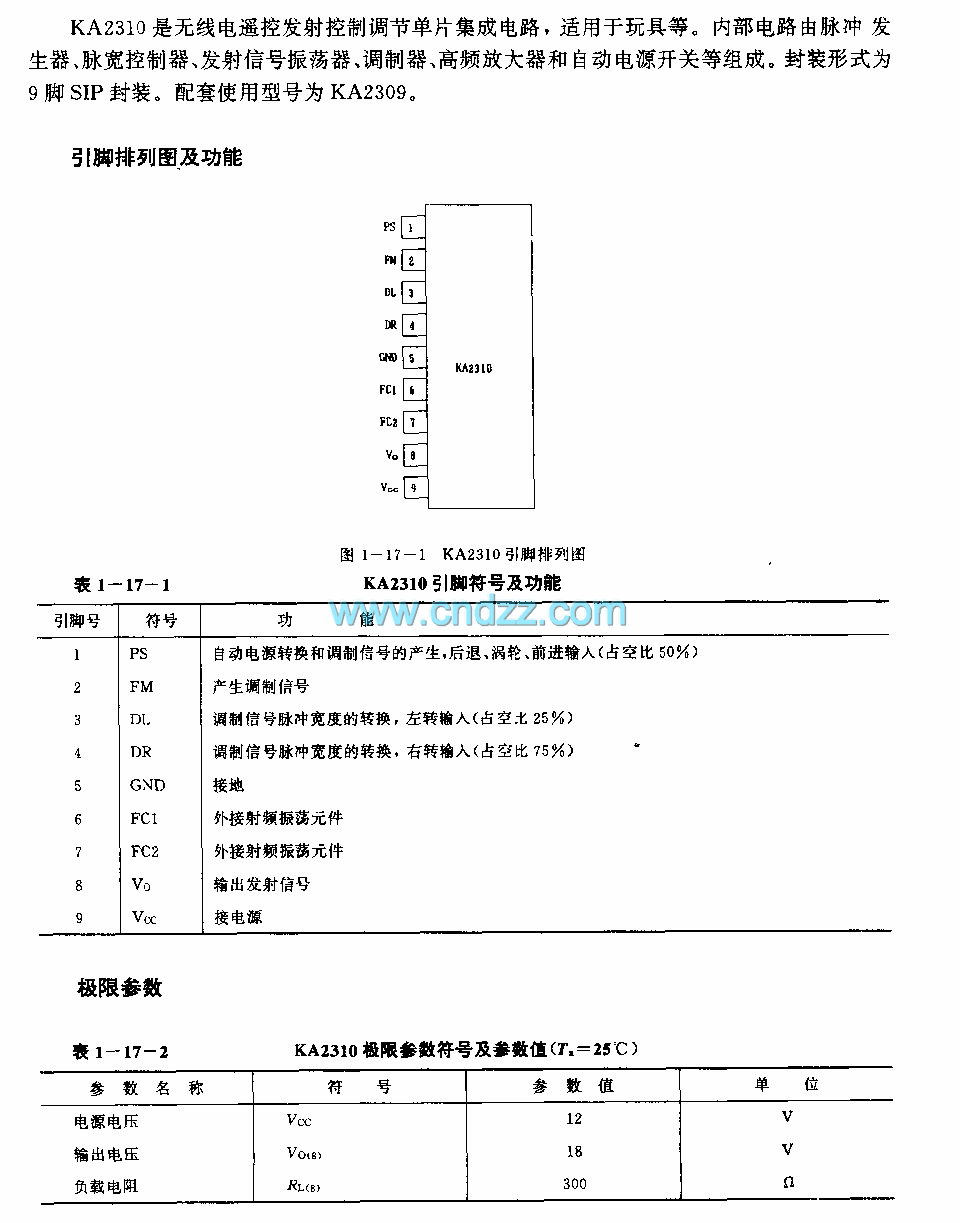

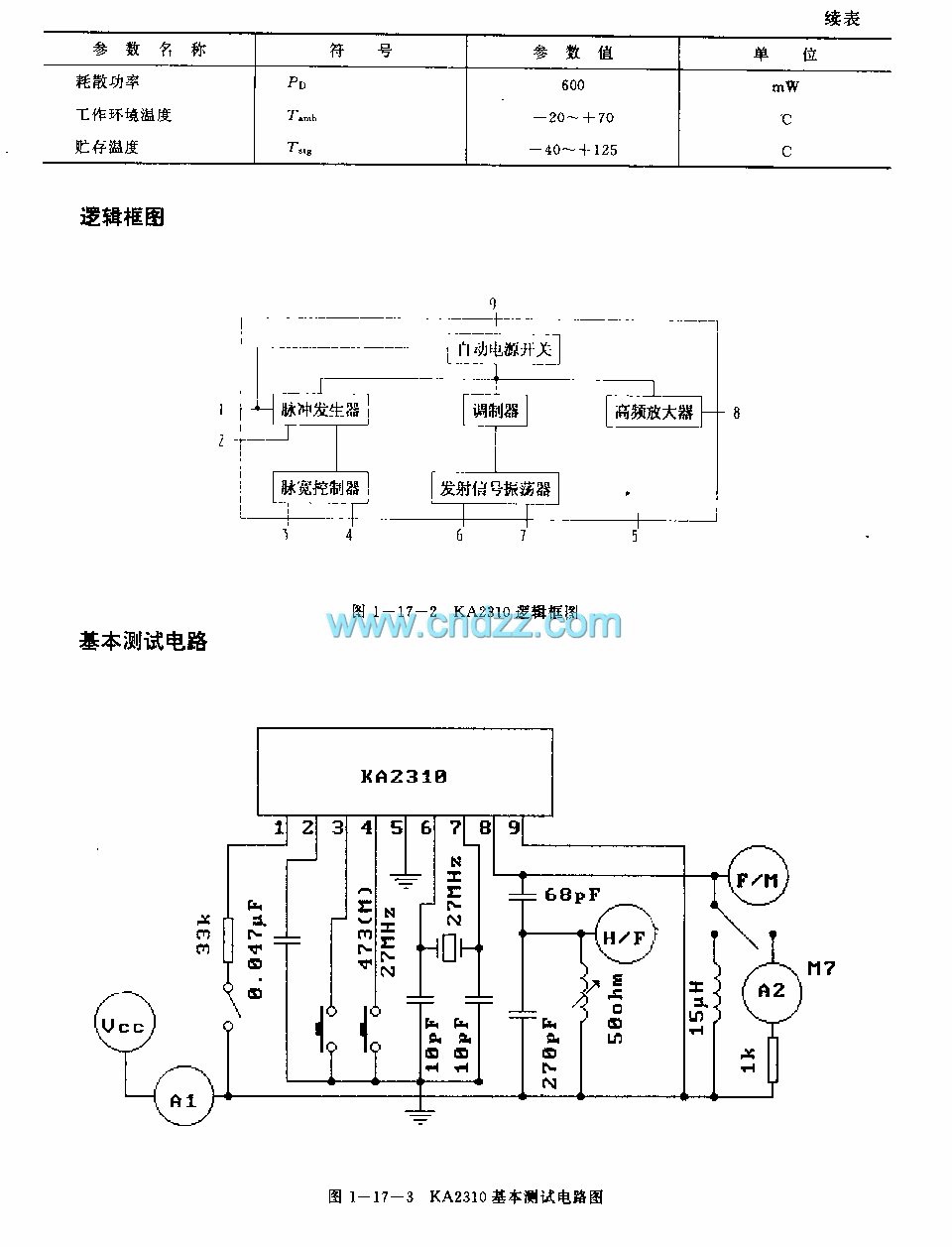

The KA2310 is designed as the wireless remote control launch control regulation circuit that can be used in the toy application. The internal circuit is composed of the pulse generator, the pulse width controller, the transmitting signal oscillator，the modulator, the high frequency amplifier and the automatic power switch. This device is in the 9-pin SIP package. The matching model is KA2309.
