Hotbox Overheating Components Circuit

Published:2011/5/17 3:54:00 Author:Sharon | Keyword: Hotbox, overheating components | From:SeekIC

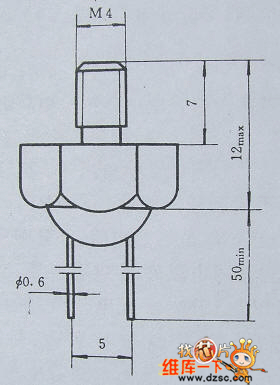

Figure 1 Typical dimensions of temperature probe PTC thermistor RT is a key component in hotbox overheating protection circuit, and its room temperature resistance is ≤ 500Ω.Its typical dimension is shown in Figure 2.10.2. The shell is made from brass screws with PTC thermistor sealed inside, and it's ensured a good heat conduction and electrical insulation with the shell.
