HT6337 (electric fan) infrared remote control receiving decoder circuit

Published:2011/8/1 3:42:00 Author:Christina | Keyword: electric fan, infrared, remote control, receiving, decoder | From:SeekIC

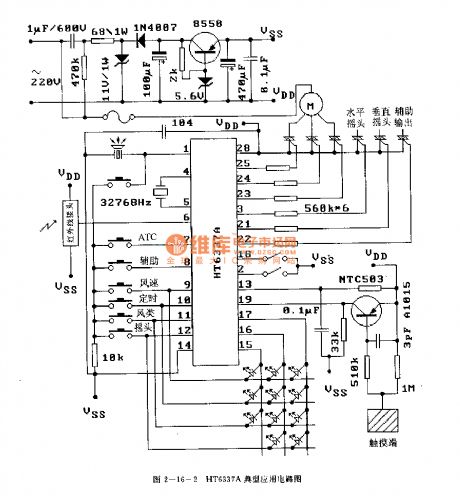

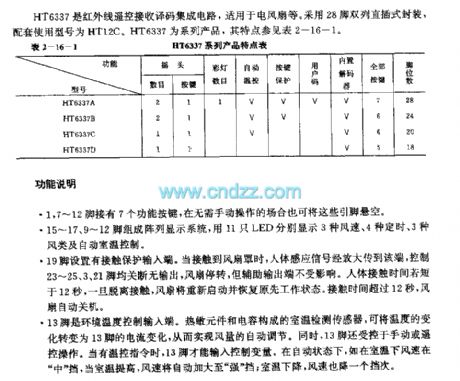

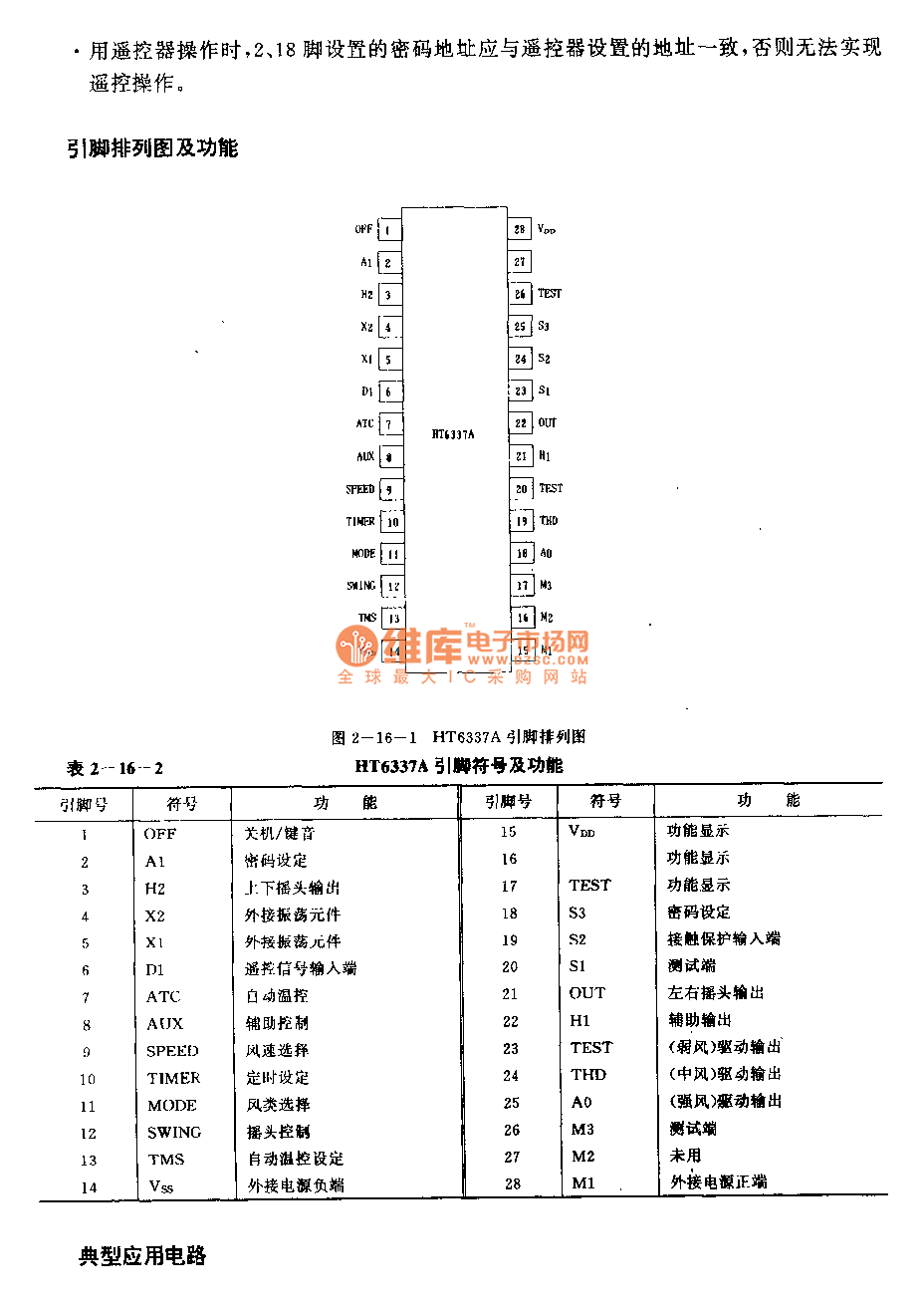

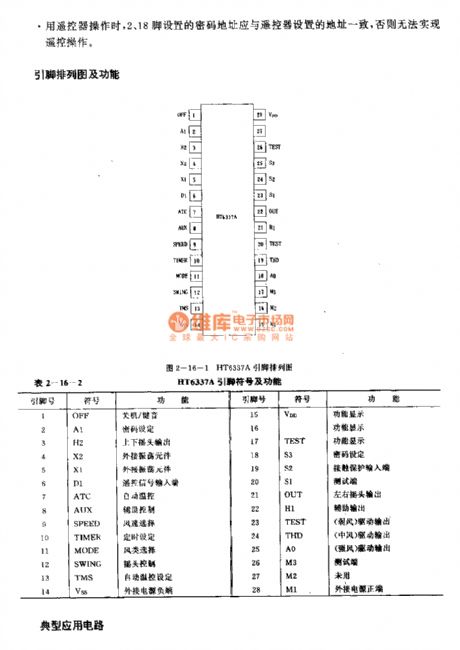

The HT6337 is designed as one kind of infrared remote control receiving decoder circuit that can be used in the electric fan application. It uses the 28-pin dual-row DIP package, the matching model is HT12C. The HT6337 is one of the series products. The features of it are as shown in table 2-16-1. The pin-1, pin-7 - pin-12 have the function buttons.The array display system is composed of the 15-17，9-12 pins, and the system uses 11 LEDs to display three kinds of wind velocities, four kinds of timings, three kinds of wind types and the automatic room temperature control.The 19-pin has the contact protection input port.The 13-pin is the environmental temperature control input port. The room temperature detection sensor is composed of the thermal components and the capacitances, it can change the temperature variation into the current variation of pin-13.
