Fans imitating natural wind control circuit with CD4541

Published:2011/4/19 22:22:00 Author:Jessie | Keyword: Fans imitating natural wind control | From:SeekIC

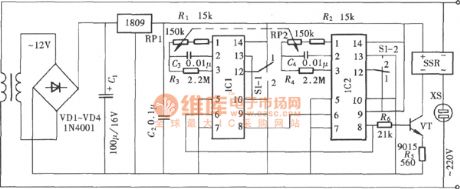

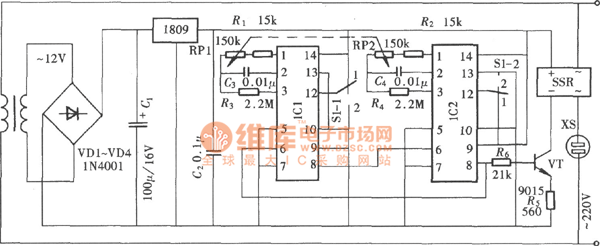

In fact, fans imitating natural wind control circuit is a kind of open/stop time transforms cycle timing controller. This control circuit makes fans when open and stop by suitable choice of electric fans' open and stop time.So that itsimulates the similar state of natural wind to make person feel both cool and comfortable. Its composition is as shown. IC1 and IC2 are CD4541.
