Electric single-girder crane remote control circuit diagram

Published:2011/4/24 11:42:00 Author:Rebekka | Keyword: Electric single-girder, crane remote control | From:SeekIC

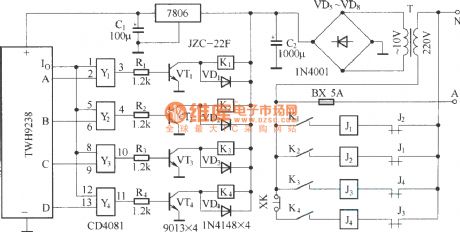

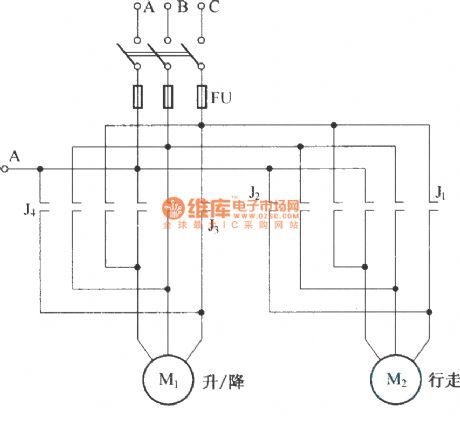

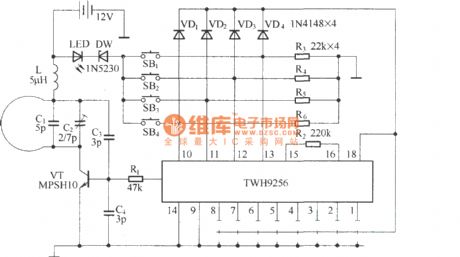

Electric single-girder cranes is also known as electric hoist. It is commonly used in small factories lifting handling equipment. Usually it is always used with drag line switching noytoperation, which is not very convenient. The circuit is composed of radio remote control radio remote control component TWH9236/38 circuit. It is shown as above. Remote control transmitter is the finished piece, that TWH9236, the internal schematic is shown as above. Remote control receiver control circuit is shown as below.
