BX1323 remote control signal receiving integrated circuit diagram

Published:2011/5/8 4:57:00 Author: | Keyword: BX1323, remote control signal receiving | From:SeekIC

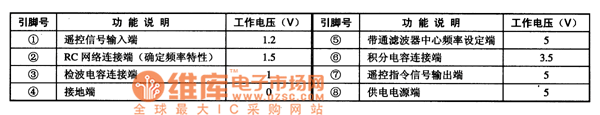

BX1323 is a remote control signal receiving integrated circuit.It's widely used as a remote control signal receiving circuit. in air conditioning, color TV sets, audio equipment, DVD players and other remote control system. 1.Features BX1323 integrated circuit includes remote control signal preamplifier circuit, band-pass filter circuit, detector, buffer circuit. 2.pin functions and data BX1323 integrated circuit uses 8-pin single in-line package.The pin functions and data are shown in Table 1. Table 1 BX1323 integrated circuit's pin functions and data 3.Typical application circuit Theremote control signal receiving typical application circuit which is posed by the BX1323 integrated circuit is shown in Figure 1. Figure 1 The typical application circuit of the BX1323 integrated circuit
