BA5201 remote control decoding integrated circuit

Published:2011/6/21 0:53:00 Author:Christina | Keyword: remote control, decoding, integrated circuit | From:SeekIC

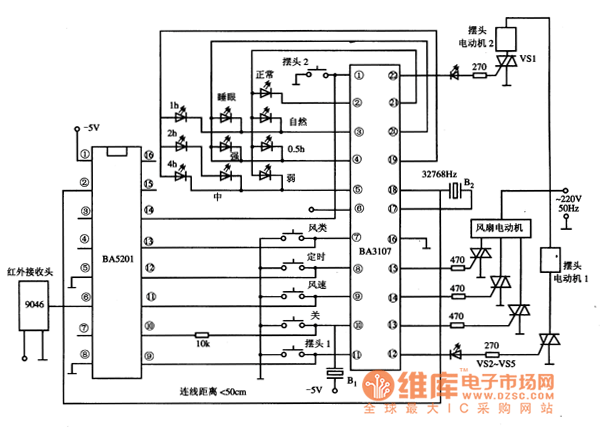

The BA5201 is designed as one kind of remote control decoding integrated circuit that is produced by the Toyo company, and it can be used in various types of remote control systems. 1.Pin functions and data The BA5201 integrated circuit is in the 16-pin dual-row DIP package, the pin functions and data is as shown in table 1. Table 1 The pin functions and data of the BA5201 2.Typical application circuit The typical application circuit of the decoding system which is composed of the BA5201 is as shown in figure 1. Figure 1 The typical application circuit of the BA5201
