BA5102 remote control encoding integrated circuit

Published:2011/6/21 1:49:00 Author:Christina | Keyword: remote control, encoding, integrated circuit | From:SeekIC

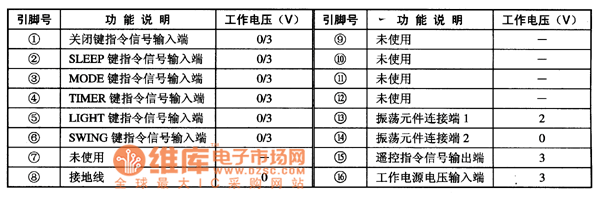

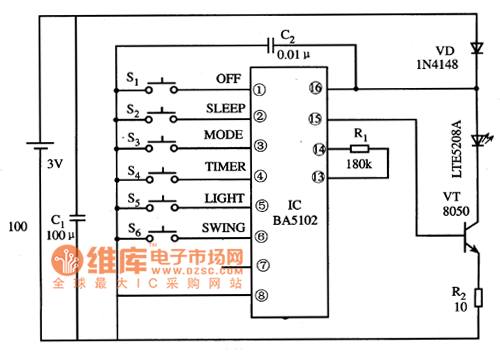

The BA5102 is designed as one kind of remote control encoding integrated circuit that is produced by the Toyo company, and it can be used in various types of electric fan's remote control transmitters. 1.Pin functions and data The BA5102 integrated circuit is in the 16-pin dual-row DIP package, the pin functions and data is as shown in table 1. Table 1 The pin functions and data of the BA5102 2.Typical application circuit The typical application circuit of the remote control transmitter which is composed of the BA5102 is as shown in figure 1. Figure 1 The typical application circuit of the remote control transmitter which is composed of the BA5102
