Adjustable multi-function timing controller circuit

Published:2011/4/19 22:57:00 Author:Jessie | Keyword: Adjustable, multi-function, timing controller | From:SeekIC

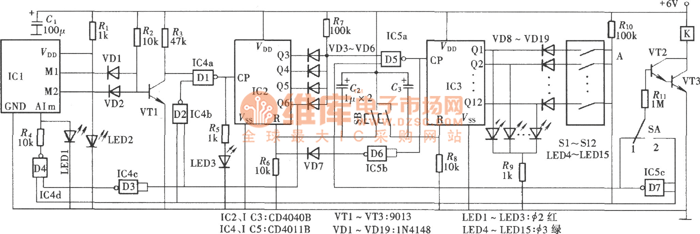

This circuit first makes seconds time base form mimute signalby the multi-stage separate frequency. After multi-stage separate frequency, mimute signalis output as binary combination classification. By the switch controlling, we can preset timing open or timing shut these two working states. This circuit has high control accuracy, and the circuit component is as shown.
