460_MC_F_M_COMMAND_RECEIVER

Published:2009/7/22 20:48:00 Author:Jessie | From:SeekIC

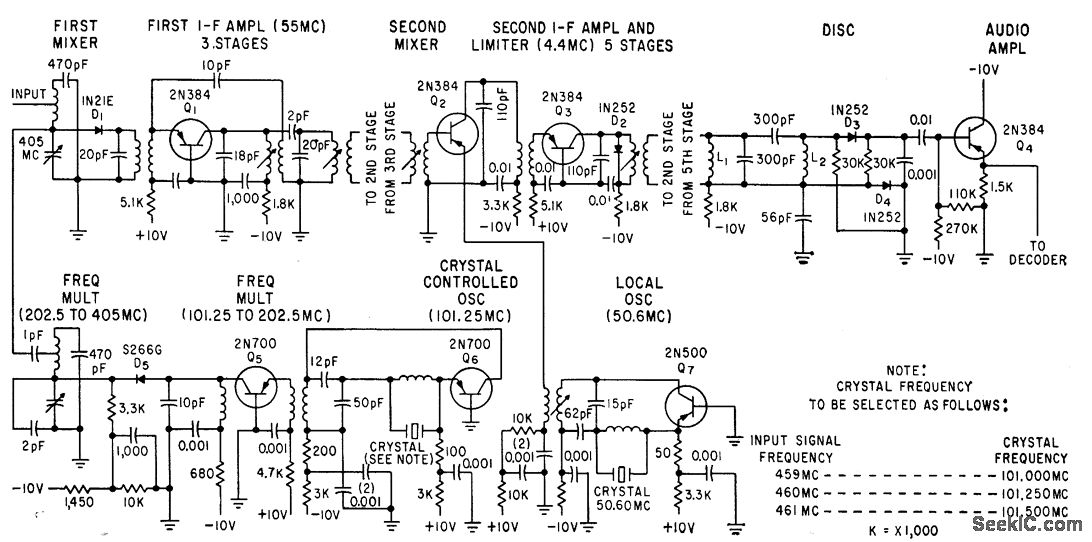

Transistorized double-conversion f-m superhet, tunable by crystal substitution in 457-462-Mc band, has 6-microvolt sensitivity for 20 db of noise quieting. Camera start and timing pulses are amplitude-modulated onto 3.5 and 12-kc carriers. After signal is detected, subcarriers are separated and pulses ore re constituted by decoder. Start pulses operate camera relays, and timing pulses lash neon lamps.-F. M. Gardner and L. R. Hawn, Camera Control System for Rocket Sled Tests, Electronics, 33:14, p 63-65.
