27255_MC_REMOTE_CONTROL_RECEIVER

Published:2009/7/23 21:45:00 Author:Jessie | From:SeekIC

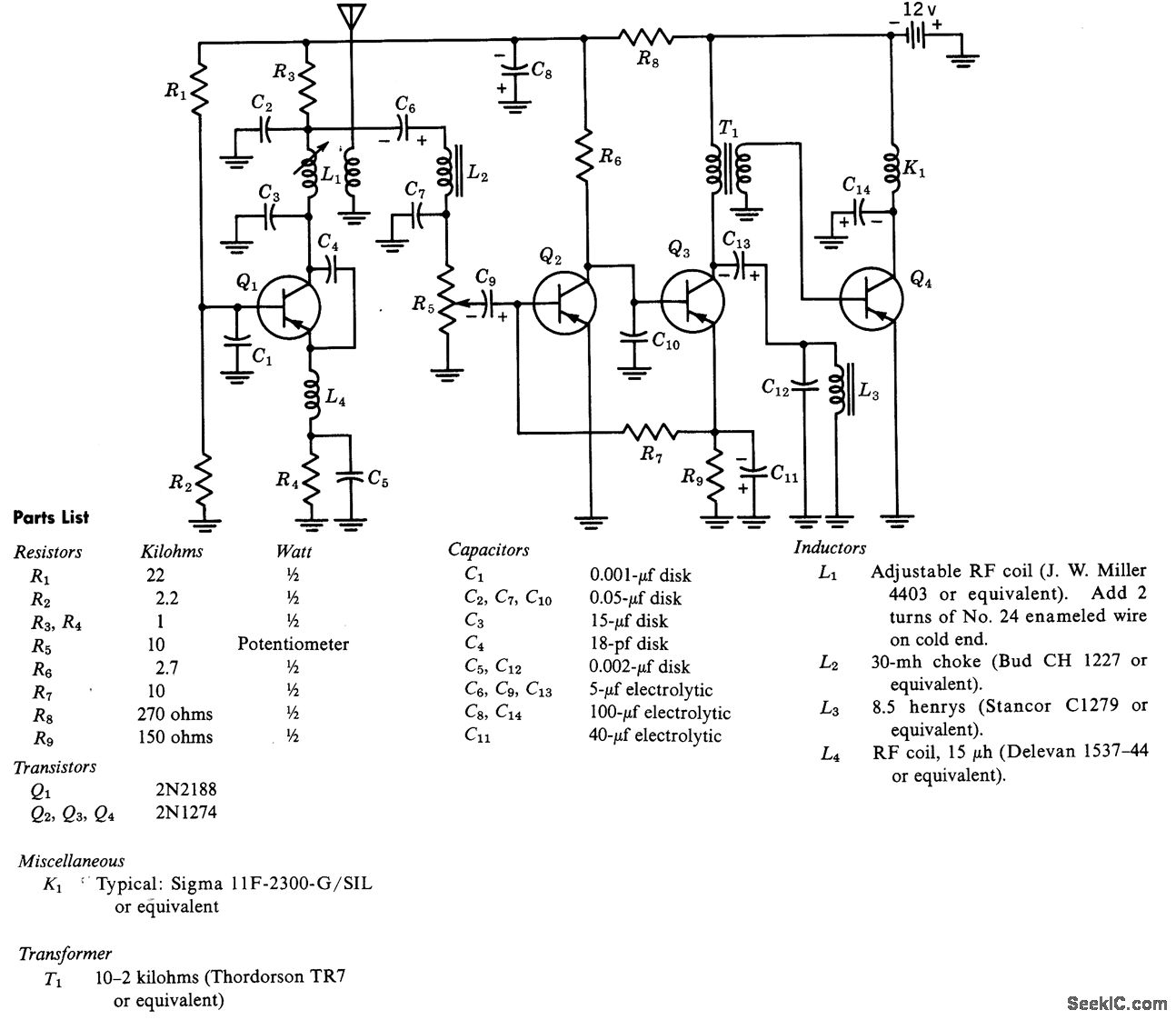

Output of superregenerative detector consists of 200-kc quench signal and 1,000-cps tone modulation from incoming signal. Quench fiber passes only audio signal to amplifier.Amplified audio is detected and resulting direct current used to operate relay K1.-Texcts Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 363.
