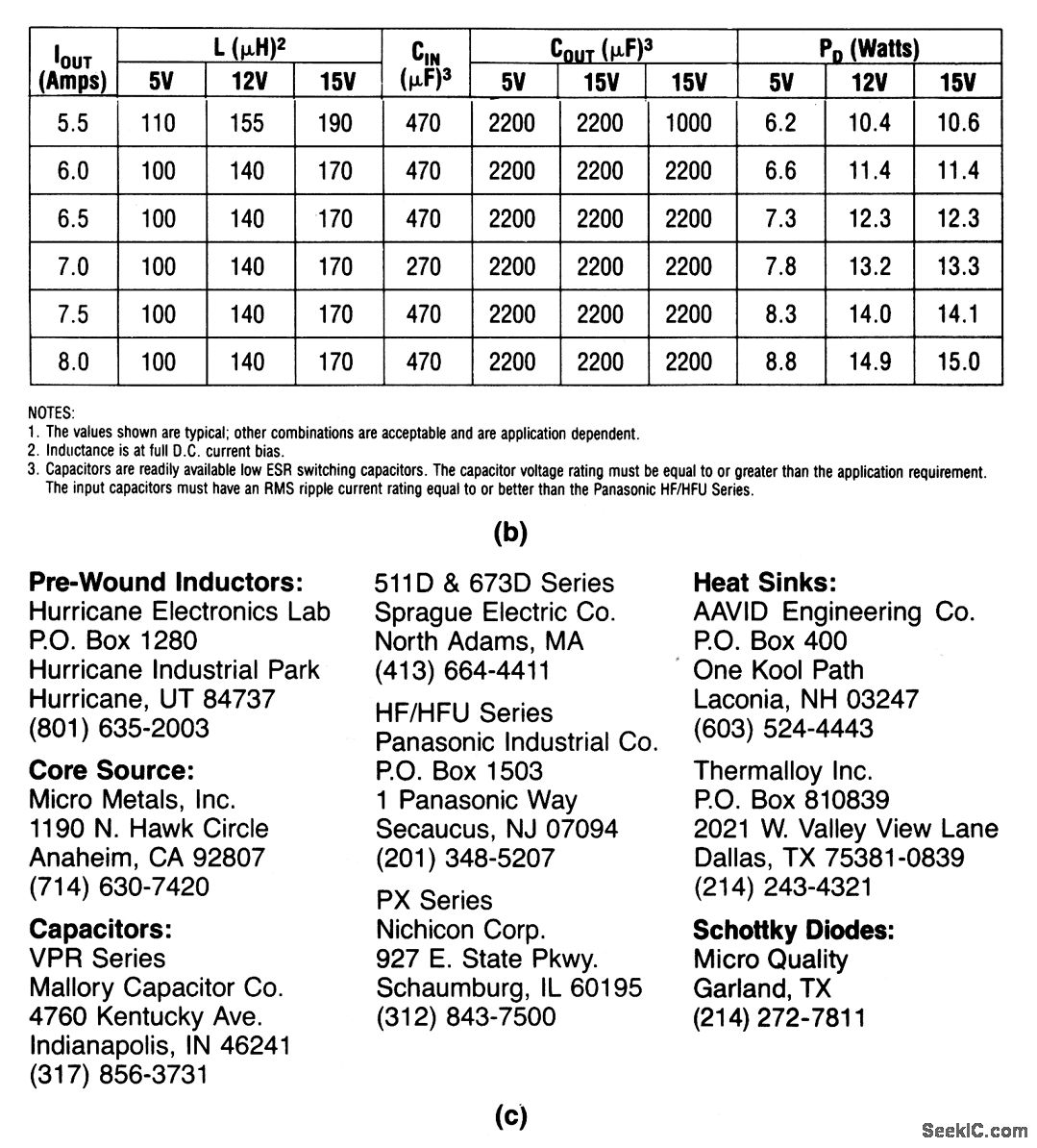

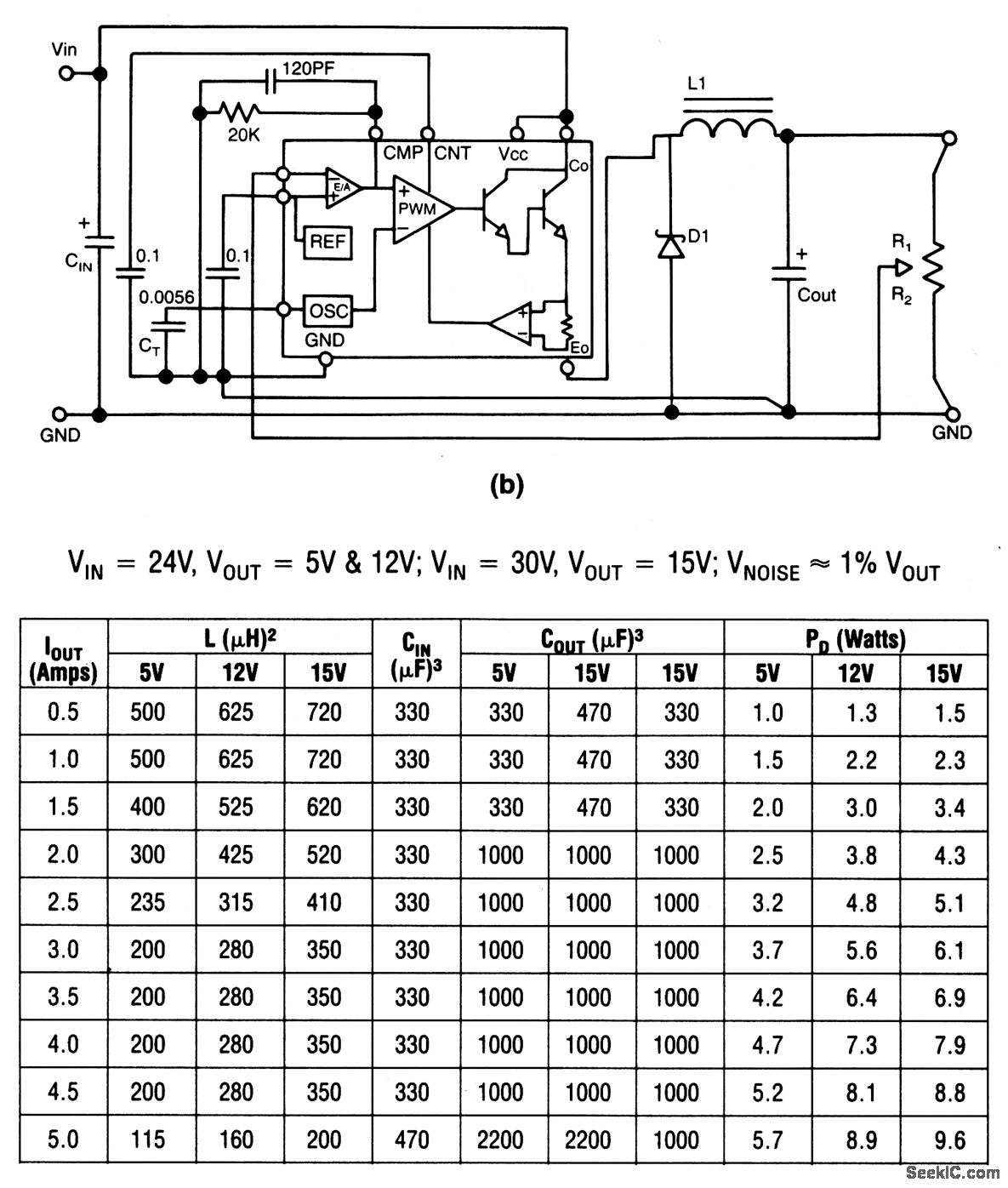

This circuit shows a dc/dc converter with adjustable output.Figure4-16B shows the values of Cin,Cout、andL required for Various input and output voltages,The part numbers required for various output-current limits are given in Figs.4-7 through 4-14,For example, use LAS-6320/6420 for currents up to 2 A、LAS-6330/6430 for currents up to 3 A,LAS-6350/6450 for currents up to 5 A、and LAS-6380/6480 for currents up to 8 A. Figure 4-16C shows information on component sources.
