complementary symmetry principle circuit of power supply

Published:2011/6/11 5:13:00 Author:chopper | Keyword: complementary symmetry, principle, power supply | From:SeekIC

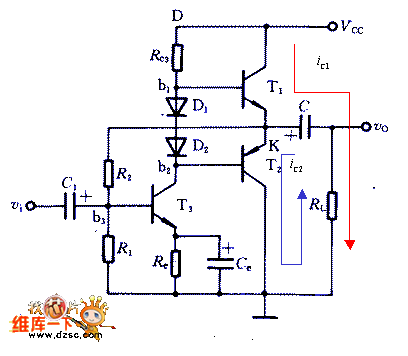

The picture 1 is a complementary symmetry principle of one power source circuit. T3 forms preamplifier stage,T1 and T2 form output stage of complementary symmetry circuit.Only the value of R1,R2 is necessary to make IC3,VB2 and V1 reach the required value when it is static.Provide T1 and T2 with a appropriate setover to make the electric potential VK=VCC/2.
