_8_A_dc_dc_step_down_converter

Published:2009/7/25 1:09:00 Author:Jessie | From:SeekIC

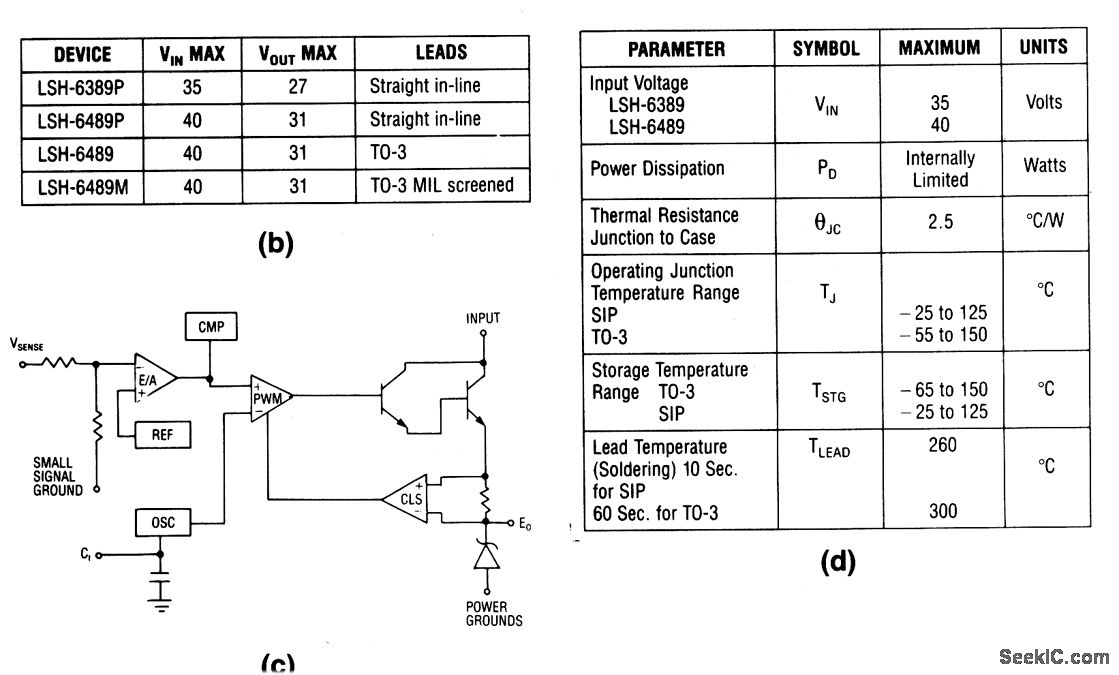

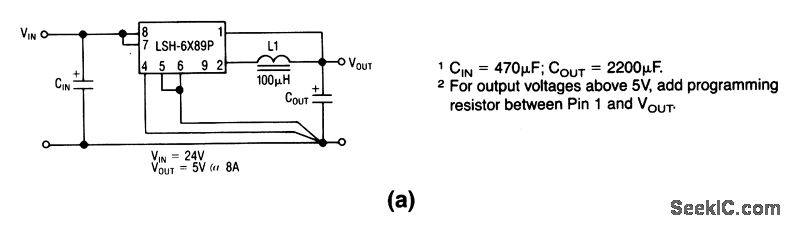

The LSH switching-regulator ICs contain most elements necessary for converter operation, as shown in Fig. 4-6C. Figure 4-6B shows the output voltage and characteristics for various part numbers. Figure 4-6D shows the absolute maximum ratings. Simply add a choke, catch diode, and two capacitors to the IC for a complete converter.
