_5__15_AND__25_V

Published:2009/7/15 21:00:00 Author:Jessie | From:SeekIC

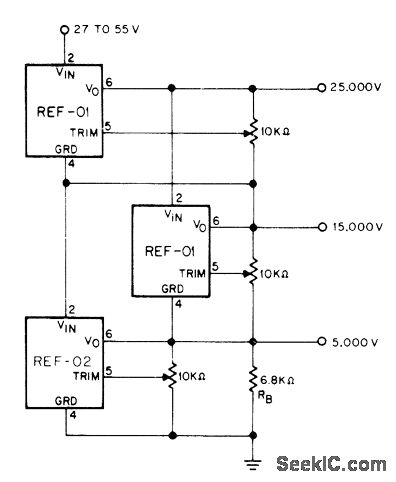

Stacking of Precision Monolithics REF-02 5-V reference with two REF-01 10-V references gives outputs increasing in steps of 10.000 V from 5,000 V. Any number of additional references can be stacked in same way up to line-voltage limit of 130 V for references, provided total load current does not exceed about 21 mA. Input change from 21 to 55 V produces output change less than noise volt-age of devices in circuit shown.- +5 V Precision Voltage Reference/Thermometer, Precision Monolithics, Santa Clara, CA, 1978, REF-02, p7.
