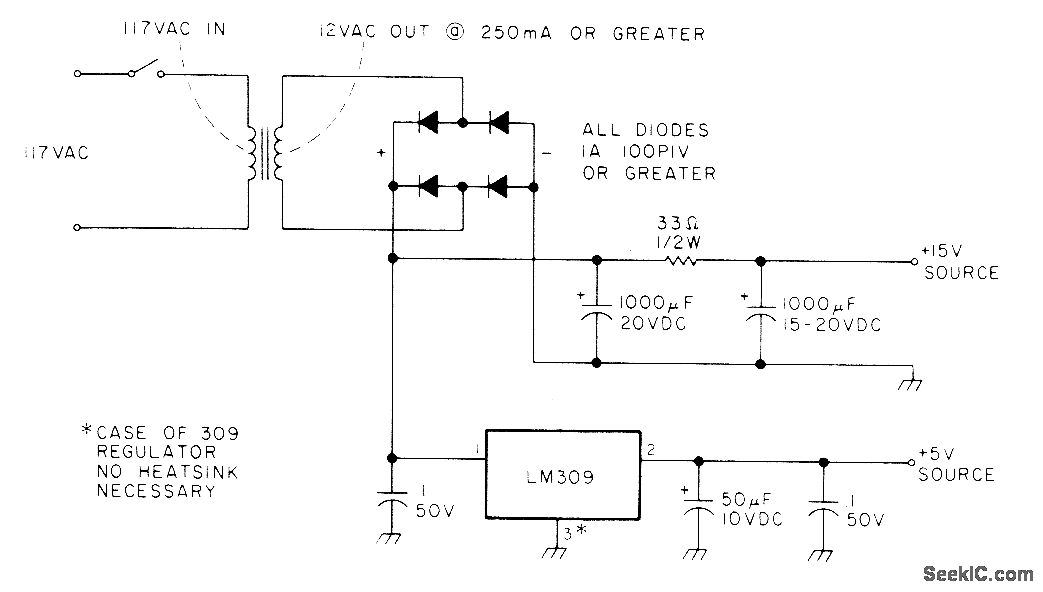

_5_V_WITH_UNREGULATED__15_V

Published:2009/7/16 21:34:00 Author:Jessie | From:SeekIC

Developed for use with audio decoder that converts BCD output of digital display to audio tones that can be recognized by blind radio operator or experimenter.-D. R. Pacholok, Digital to Audio De-coder, 73 Magazine, Oct. 1977, p 178-180.
