_5_V_WITH_LM3OOH

Published:2009/7/17 4:40:00 Author:Jessie | From:SeekIC

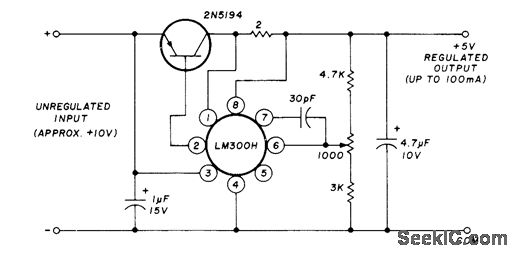

Series power transistor and National IC voltage regulator provide up to 100 mA. Improved version of regulator,LM305H, may be substituted.-H. Olson, Power-Supply Servicing, Ham Radio, Nov.1976, p 44-50.
