_15_V_HIGH_PRECISION

Published:2009/7/15 22:15:00 Author:Jessie | From:SeekIC

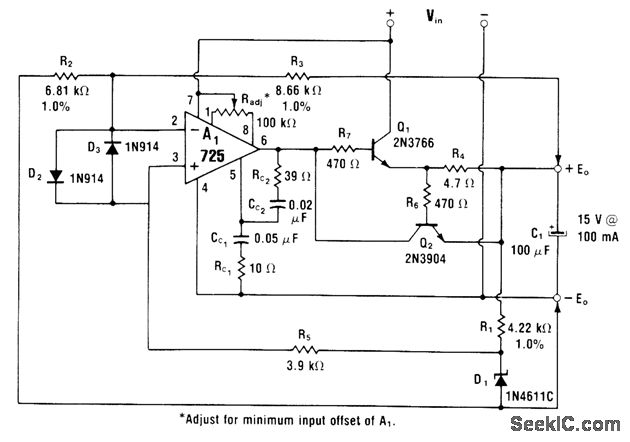

Uses 725 opamp having low offset drift and high common-mode rejection in combination with low-drift version of 1N4611 zener to give highly stable operation at output currents up to 100 mA. Close-tolerance low-temperature-coefficient film or wirewound resistors are required for R1, R2, and R3. Remote sensing at load corrects for wiring voltage drops.-W. G. Jung, IC Op-Amp Cookbook, Howard W. Sams, Indianapolis, IN, 1974, p 152-155.
