_12_V_flash_memory_programming_supply

Published:2009/7/23 23:37:00 Author:Jessie | From:SeekIC

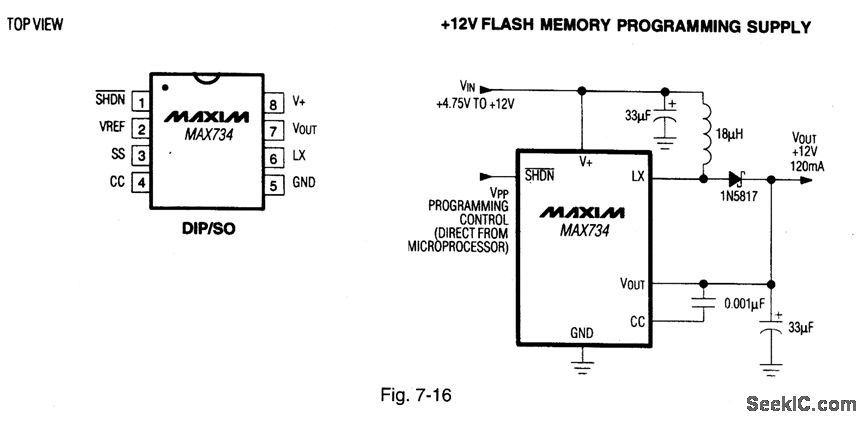

Figure 7-16 shows a MAX734 connected as a flash-memory programming supply. Typical efficiency is 85%. The IC also has a logic-controlled shutdown pin that allows direct microprocessor control. MAXIM HIGH-RELIABILITY DATA Book, 1993, P. 4-65.
