Z_AXIS_MODULATION

Published:2009/7/16 21:22:00 Author:Jessie | From:SeekIC

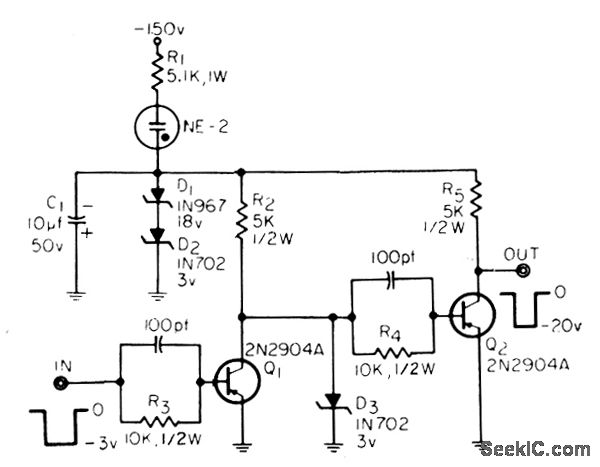

Pulse amplifier allows crt beam-intensity modulation from 3.v logic levels.Requires only single -150 v supply. Intended as modification for Tektronix oscilloscope.-J. H.Cormack, Pulse Amplifier for Beam Intensity Modulation, EEE, 14:1, p 63.
