WINDOW_DETECTOR

Published:2009/7/14 22:05:00 Author:Jessie | From:SeekIC

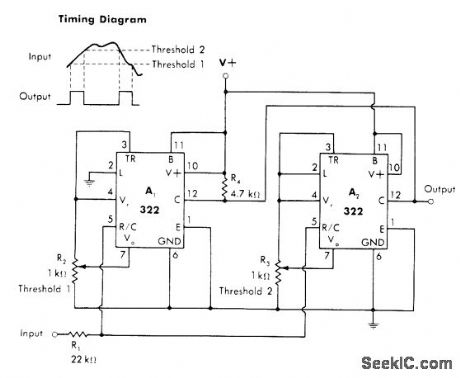

Connections shown for 322 comparators give high output only when input voltage is between thresholds set by R2 and R3 (within voltage window). Output of circuit goes low whenever input is below threshold 1 or above threshold 2.-W. G. Jung, IC Timer Cookbook, Howard W. Sams, Indianapolis, IN, 1977, p 153.
