Wideband_FET_input_composite_buffer_

Published:2009/7/23 23:44:00 Author:Jessie | From:SeekIC

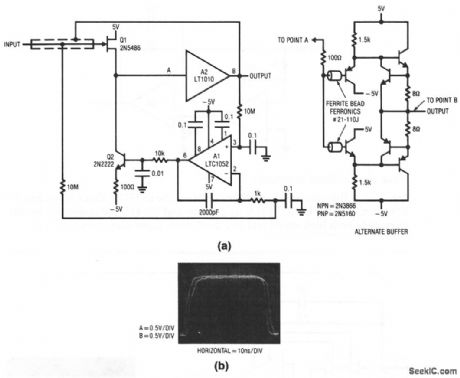

This composite circuit provides a gain of 0.95 with a full power bandwidth near 50 MHz and a slew rate of 2000 V/μs. Offset is about 5μV. Figure 1-19B shows a delay between input and output of about 4 ns.
