WIND_VELOCITY_TRANSMITTER

Published:2009/7/19 21:59:00 Author:Jessie | From:SeekIC

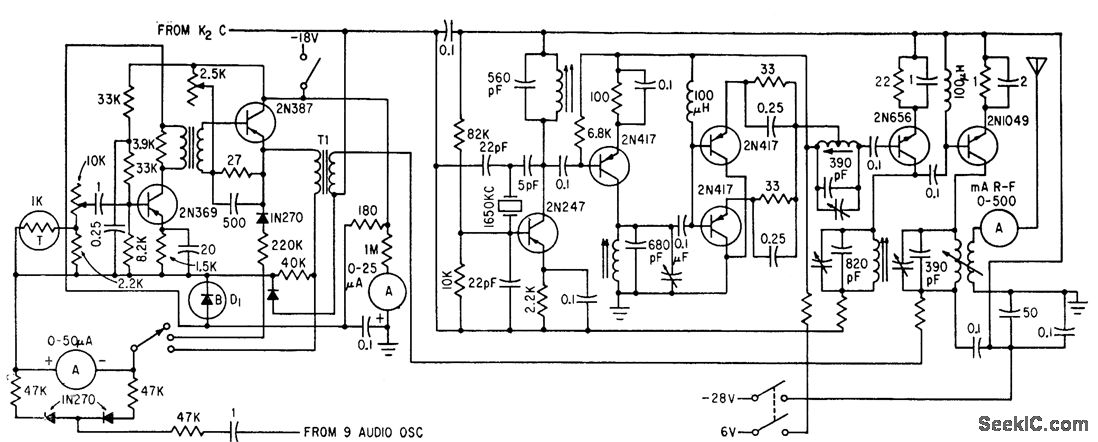

Batter-operated transmitter at remote mountctin site uses transmitters exclusively, for power econ to telemeter wind direction and velocity for predicting avalanches. Modulator uses nine separate 2N366 audio oscillators (not shown) that feed 2N369 class-A buffer.-R. Beaulieu and G. Neal, Wind Velocity Telemetering System, Electronics, 33:29, p 68-70.
