Variable Power Supply Using Fixed Regulator

Published:2012/11/26 1:03:00 Author:muriel | Keyword: Variable Power Supply, Fixed Regulator | From:SeekIC

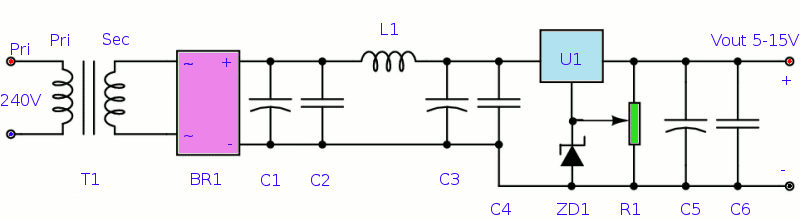

This is a similar power supply that I used to power my FM Transmitter. After suffering long problems with mains hum, this design using a pi filtered C-L-C approach. This circuit offers excellent ripple rejection.
