VARIABLE_VOLTAGE_SOURCE

Published:2009/7/16 23:37:00 Author:Jessie | From:SeekIC

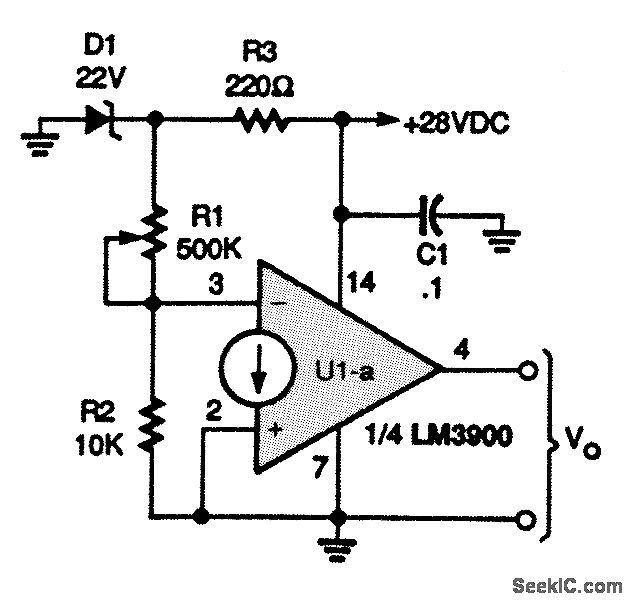

This variable-voltage source can provide between 0.6 and 20 V, depending on the setting of R1.
