VARIABLE_TIME_INTERVAL_STANDARD

Published:2009/7/17 5:19:00 Author:Jessie | From:SeekIC

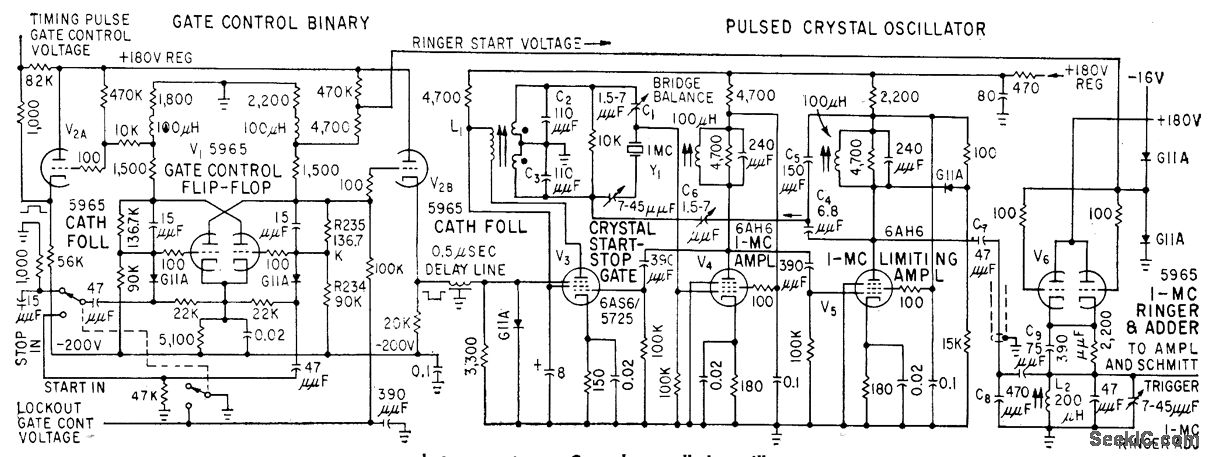

Produces two delayed pulses for establishing accurate time intervals from 1 to 10,000 microsec. Delays are adjustable in 1.microsec increments, with continuous interpolation between steps. Crystal-controlled oscillator and fast preset counters reduce time-delay errors. Useful in calibrating radar and loran timing circuits, oscilloscopes, and marker generators, as well as for precision pulse code modulation and for cadibrating delay lines.-D. Broderick, D. Hartke, and M. Willrodt, Precision Generator for Radar Range Calibrcation, Electronics, 32:14; p 58-60.
