Published:2009/7/17 4:30:00 Author:Jessie | From:SeekIC

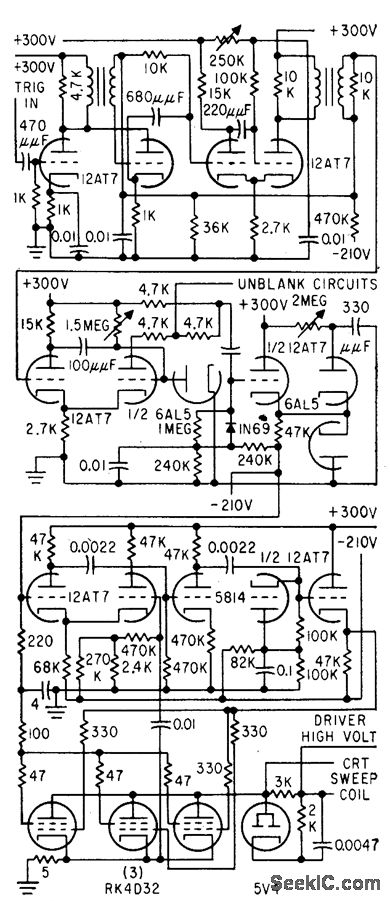

Operates with sweep lengths varying by factor of 8 to 1. Supplies 1,100 v at 160 ma for 0.5-mile range and 400 v at 270 ma for 4-mile range.-R. F. P. Smith, Airport Radar Has High Resolution, Electronics, 32:14, p 64-69.
