VARIABLE_REMOTE_POWER_SUPPLY

Published:2009/7/21 5:48:00 Author:Jessie | From:SeekIC

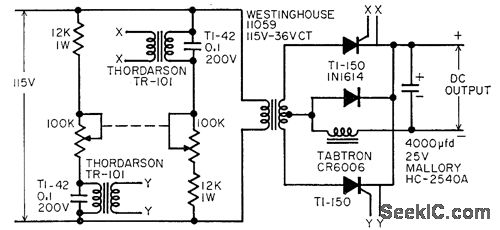

Permits varying output d-c voltage of scr power supply without changing a-c input voltage. Conduction time of scr's during each half-cycle determines average power delivered to load. Conduction time is controlled with pulse gating circuit that is synchronized with a-c line and is phase-variable. Provides maximum output of 60 amp at 20 V.-B. F. Gilbreath, Variable High Current Remote Power Supply, EEE, 10:12, p 27-28.
