VARIABLE_DUAL_POLARITY

Published:2009/7/19 21:05:00 Author:Jessie | From:SeekIC

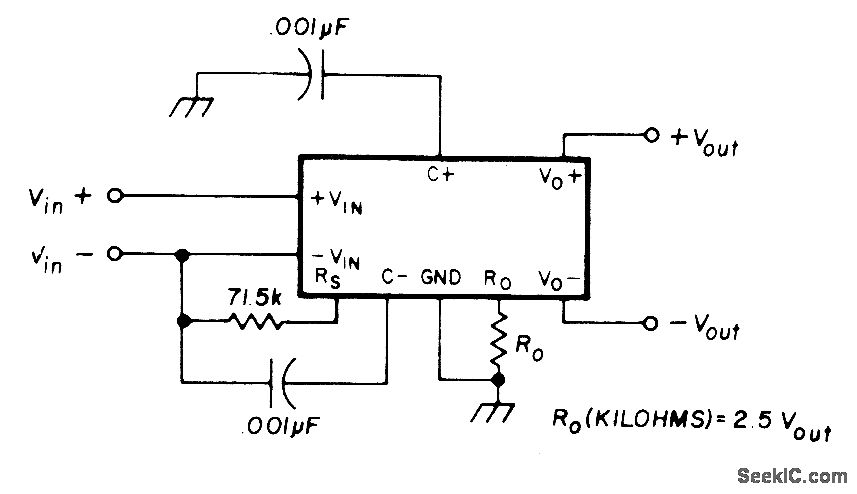

External resistor R0 determines values of positive and negative regulated output voltages provided by Silicon General SG3501 dual regulator.-H. Olson, Second-Generation IC Voltage Regulators, Ham Radio, March 1977, p 31-37.
