VARACTOR_FREQUENCY_QUADRUPLER

Published:2009/7/15 3:00:00 Author:Jessie | From:SeekIC

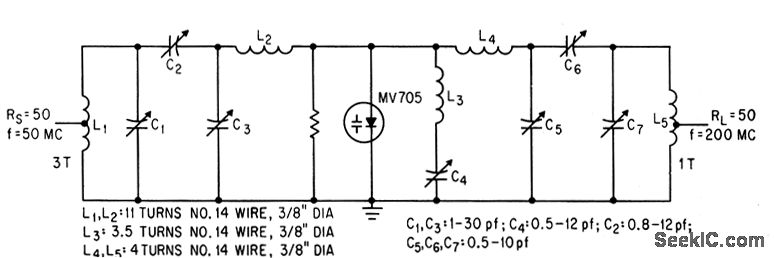

With 50-Mc input, output is 22 w at 200 Mc. Series-tuned idler circuit L3-C4 is omitted for frequency-doubling.-L. E. Clark, E. B. Mack, and R. C. Hejhall, Highlights of Small-Signal Circuit Design, Electronics, 36:49, p 46-50.
